Читаем битстрим
Вы узнаете
Что внутри файла .bit и для какого чипа он собран.

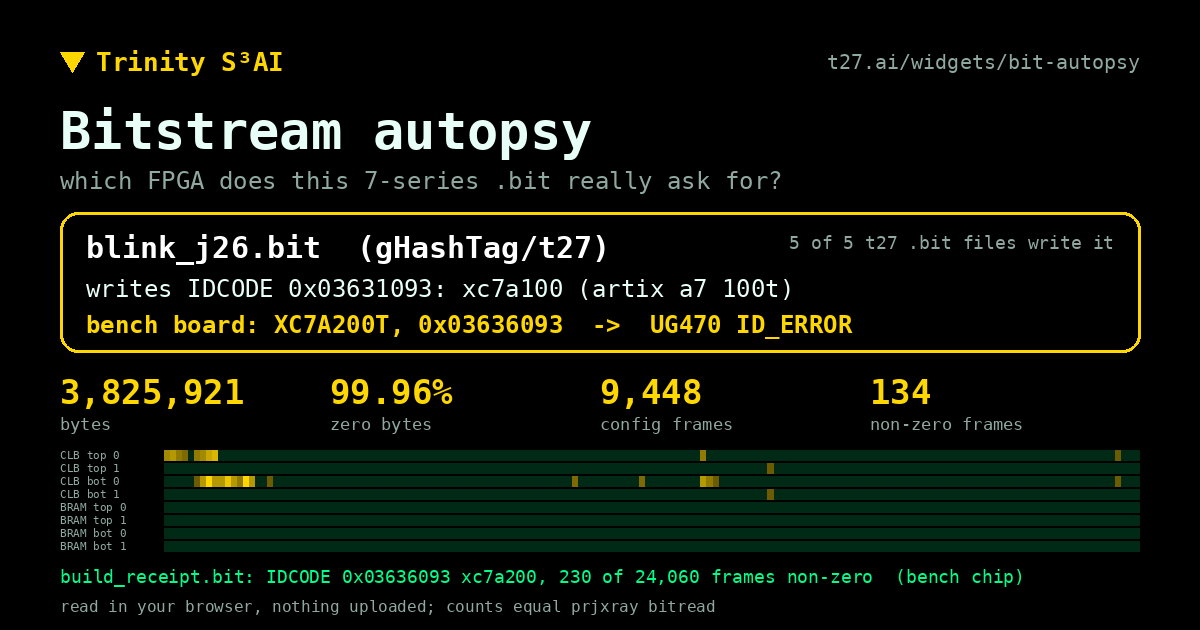

Файл .bit — это заголовок, за которым идут пакеты: команды логике конфигурации чипа и сами фреймы. Одна из этих команд записывает IDCODE чипа, для которого файл собран. Бросьте .bit во вскрытие и увидите, какой чип он просит. Пять битстримов, закоммиченных в t27, оказываются собраны для другой детали, чем наш стенд.
Попробуйте
Откройте пример blink_j26 и сравните деталь в его заголовке с IDCODE, который он записывает. В спеке прочитайте HELP_LINE: с каким эталонным инструментом tri x7-writer совпадает байт в байт и какой вход он отвергает?

Drop a Xilinx 7-series .bit: header, the IDCODE it writes and the part that names, frames, zero bytes and packets, read in your browser. Nothing is uploaded.
specs/tools/trios/tri/x7-writer.t27
// SPDX-License-Identifier: Apache-2.0
; specs/tools/trios/tri/x7-writer.t27 -- tool gHashTag/BrowserOS:tri/x7-writer, the `tri x7-writer` command of the trios loop CLI
; Generated by apps/website/scripts/tools-from-trios-tri.mjs from gHashTag/BrowserOS:trios/bin/tri at 7366096248df; do not edit.
; The CLI the loop timers run (`tri drift` holds ~/.local/bin/tri to the tracked copy). It is another program than
; the Rust tri of gHashTag/t27 and the Zig tri of gHashTag/trinity, so the ID is repository-qualified.
; A card is data and carries no test block. ASCII only (L3). phi^2 + 1/phi^2 = 3 | TRINITY
module tool_trios_tri_x7_writer;
pub const KIND : str = "tool";
pub const FAMILY : str = "tri-cli";
pub const ID : str = "gHashTag/BrowserOS:tri/x7-writer";
pub const REPO : str = "gHashTag/BrowserOS";
pub const QUALIFIED_ID : str = "gHashTag/BrowserOS:tri/x7-writer";
pub const SCHEMA : u32 = 2;
pub const COMMAND : str = "tri x7-writer";
; The case arm of the dispatcher and the first line of it that does the work.
pub const VARIANT : str = "case arm `x7-writer)`, line 1903";
pub const SOURCE : str = "trios/bin/tri";
pub const ENTRY : str = "trios/bin/tri";
pub const SOURCE_COMMIT : str = "7366096248dfb09893e9a7d1a0f1c56ced13d16e";
pub const ROUTED : bool = true;
pub const DISPATCH : str = "exec python3 \"$HOME/skills/xilinx7-bitstream-loop/scripts/x7.py\" writer \"$@\"";
pub const DOCUMENTED : bool = true;
pub const HELP_LINE : str = "tri x7-writer [--heal] -- bitwalk --write byte-identical to xc7frames2bit on ~/.cache/x7/writer (16 entries) + wrong-part refusal";
pub const CATEGORY : str = "xilinx7 MVP loop (bitstream back half as .t27, skill xilinx7-bitstream-loop)";
pub const ABOUT : str = "bitwalk --write byte-identical to xc7frames2bit on ~/.cache/x7/writer (16 entries) + wrong-part refusal";
pub const ABOUT_SOURCE : str = "`tri help` (the heredoc under the help arm of trios/bin/tri)";
pub const ACTIONS : [0]str = [];
pub const ACTIONS_ABOUT : [0]str = [];
pub const ARGS : [1]str = ["[--heal]"];
pub const AGENTS : [0]str = [];
pub const AGENTS_NOTE : str = "No source binds an agent letter to this command: the trios CLI is not named by docs/agents/AGENTS_ALPHABET.md or .claude/agents/*.md of gHashTag/t27.";
pub const WHEN_TO_USE : str = "bitwalk --write byte-identical to xc7frames2bit on ~/.cache/x7/writer (16 entries) + wrong-part refusal";
; public/term/tri-x7-fasm/meta.json lists 1 run(s) of `tri x7-writer`; recorded with the live ~/.local/bin/tri,
; not a build of SOURCE_COMMIT. The site plays it at the end of this card.
pub const CAST : str = "term/tri-x7-fasm/session.cast";
pub const WITNESS : str = "source-parse";
pub const WITNESS_SOURCE : str = "gHashTag/BrowserOS:trios/bin/tri at 7366096248dfb09893e9a7d1a0f1c56ced13d16e, read as text (the help heredoc and the top-level case arms); the CLI was not run";
pub const ENABLED : bool = true;
