Итог: переугадайте yosys
Вы узнаете
Соберите всё вместе: угадайте, сколько LUT стоит настоящий модуль t27.
Всё из этого курса в одной игре. Каждый день Gatle показывает один настоящий модуль t27 и Verilog, который ваш браузер из него компилирует; у вас шесть попыток угадать, сколько LUT на него потратил yosys. Используйте то, что знаете: ширины, умножители, иерархию, состояние. Потом посмотрите, как ещё люди и агенты соревнуются на t27.
Попробуйте
Сыграйте сегодняшнюю задачу. Затем прочитайте Verilog модуля и объясните, почему он стоил столько, сколько стоил. Запустите тесты в спеке: сколько из 12 инструкций hello_kernel — операции GF16 и какой тест говорит, что все 12 занимают 48 байт?

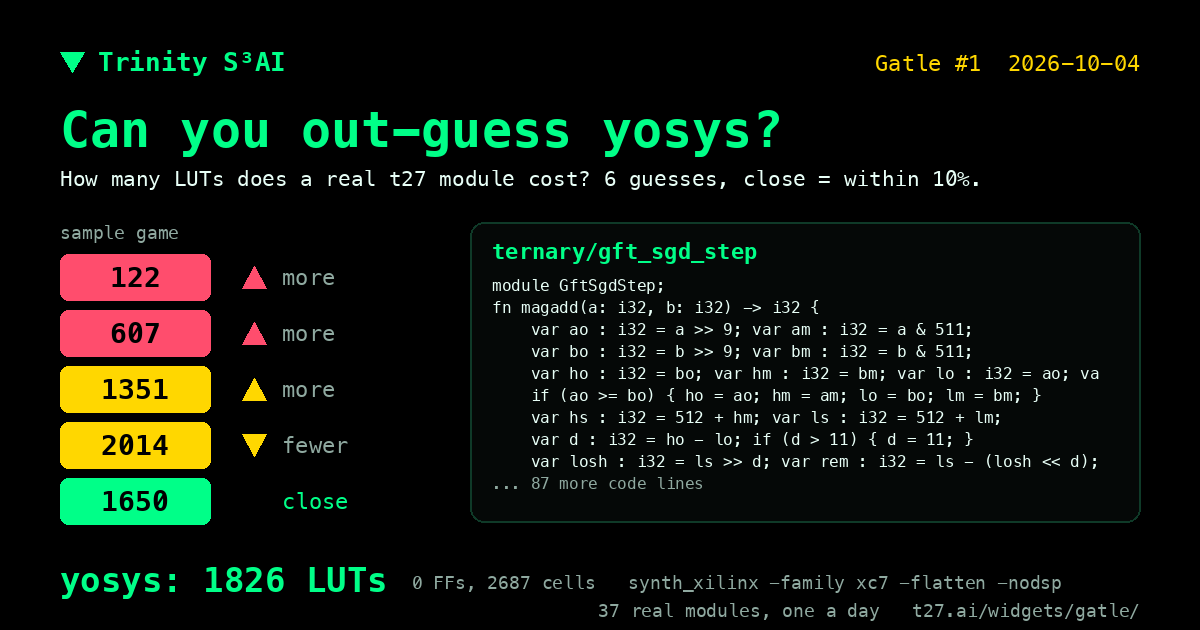

A daily guessing game: one real t27 module, its Verilog compiled in your browser, six guesses at the LUT count yosys reported for it.
specs/fpga/e2e_demo.t27
// SPDX-License-Identifier: Apache-2.0
// t27/specs/fpga/e2e_demo.t27
// T27 End-to-End Demo Specification
// Exercises the full toolchain: assembler -> ternary core -> GF16 -> VCD trace
// Validates the complete FPGA pipeline from spec to hardware simulation
// Uses flat arrays + count fields (parser-compatible)
// phi^2 + 1/phi^2 = 3 | TRINITY
module E2eDemo {
// === Demo program (trivial ternary kernel) ===
pub struct DemoKernel {
name : &str,
instr_count : u32,
gf16_ops : u32,
alu_ops : u32,
mem_ops : u32,
}
fn hello_kernel() -> DemoKernel {
return DemoKernel{
.name = "hello_trinity",
.instr_count = 12,
.gf16_ops = 4,
.alu_ops = 6,
.mem_ops = 2,
};
}
fn gf16_mac_kernel() -> DemoKernel {
return DemoKernel{
.name = "gf16_mac_demo",
.instr_count = 20,
.gf16_ops = 10,
.alu_ops = 6,
.mem_ops = 4,
};
}
// === Pipeline simulation result ===
pub struct PipeResult {
cycles : u32,
instr_retired : u32,
stalls : u32,
gf16_results : u32,
errors : u32,
}
fn pipe_result_ok(cycles: u32, retired: u32, gf16: u32) -> PipeResult {
return PipeResult{
.cycles = cycles,
.instr_retired = retired,
.stalls = 0,
.gf16_results = gf16,
.errors = 0,
};
}
fn pipe_result_error(cycles: u32, errors: u32) -> PipeResult {
return PipeResult{
.cycles = cycles,
.instr_retired = 0,
.stalls = 0,
.gf16_results = 0,
.errors = errors,
};
}
// === Demo config ===
pub struct DemoConfig {
kernel : DemoKernel,
clock_mhz : u32,
max_cycles : u32,
trace_enabled : bool,
formal_check : bool,
}
fn demo_config(kernel: DemoKernel) -> DemoConfig {
return DemoConfig{
.kernel = kernel,
.clock_mhz = 100,
.max_cycles = 100000,
.trace_enabled = true,
.formal_check = true,
};
}
// === Query functions ===
fn ipc(result: PipeResult) -> u32 {
if result.cycles == 0 {
return 0;
}
return result.instr_retired * 100 / result.cycles;
}
fn cpi(result: PipeResult) -> u32 {
if result.instr_retired == 0 {
return 0;
}
return result.cycles / result.instr_retired;
}
fn gf16_throughput(result: PipeResult, clock_mhz: u32) -> u32 {
if result.cycles == 0 {
return 0;
}
return result.gf16_results * clock_mhz * 1000 / result.cycles;
}
fn sim_time_us(cfg: DemoConfig, cycles: u32) -> u32 {
if cfg.clock_mhz == 0 {
return 0;
}
return cycles / cfg.clock_mhz;
}
fn kernel_size_bytes(kernel: DemoKernel) -> u32 {
return kernel.instr_count * 4;
}
fn passed(result: PipeResult) -> bool {
return result.errors == 0 and result.instr_retired > 0;
}
// === Validation ===
fn validate_kernel(kernel: DemoKernel) -> u32 {
var errors : u32 = 0;
if kernel.name == "" {
errors = errors + 1;
}
if kernel.instr_count == 0 {
errors = errors + 1;
}
return errors;
}
fn validate_config(cfg: DemoConfig) -> u32 {
var errors : u32 = 0;
errors = errors + validate_kernel(cfg.kernel);
if cfg.clock_mhz == 0 {
errors = errors + 1;
}
if cfg.max_cycles == 0 {
errors = errors + 1;
}
return errors;
}
// === Tests ===
test hello_kernel_creation
given k = hello_kernel()
then k.name == "hello_trinity"
and k.instr_count == 12
and k.gf16_ops == 4
and k.alu_ops == 6
and k.mem_ops == 2
test gf16_mac_kernel_creation
given k = gf16_mac_kernel()
then k.name == "gf16_mac_demo"
and k.instr_count == 20
and k.gf16_ops == 10
test pipe_result_ok
given r = pipe_result_ok(100, 95, 10)
then r.cycles == 100
and r.instr_retired == 95
and r.stalls == 0
and r.gf16_results == 10
and r.errors == 0
test pipe_result_error
given r = pipe_result_error(50, 2)
then r.errors == 2
and r.instr_retired == 0
test ipc_calculation
given r = pipe_result_ok(100, 50, 0)
then ipc(r) == 50
test ipc_zero_cycles
given r = pipe_result_ok(0, 0, 0)
then ipc(r) == 0
test cpi_calculation
given r = pipe_result_ok(200, 100, 0)
then cpi(r) == 2
test cpi_zero_retired
given r = pipe_result_ok(100, 0, 0)
then cpi(r) == 0
test gf16_throughput_calc
given r = pipe_result_ok(1000, 500, 100)
then gf16_throughput(r, 100) == 10000
test sim_time_us
given cfg = demo_config(hello_kernel())
then sim_time_us(cfg, 100000) == 1000
test kernel_size_bytes
given k = hello_kernel()
then kernel_size_bytes(k) == 48
test passed_ok
given r = pipe_result_ok(100, 50, 10)
then passed(r) == true
test passed_with_errors
given r = pipe_result_error(100, 1)
then passed(r) == false
test validate_hello_kernel
given k = hello_kernel()
then validate_kernel(k) == 0
test validate_empty_kernel
given k = DemoKernel{.name = "", .instr_count = 0, .gf16_ops = 0, .alu_ops = 0, .mem_ops = 0}
then validate_kernel(k) > 0
test validate_demo_config
given cfg = demo_config(hello_kernel())
then validate_config(cfg) == 0
// === Invariants ===
invariant kernel_size_positive
given k = hello_kernel()
assert kernel_size_bytes(k) > 0
invariant ipc_non_negative
given r = pipe_result_ok(100, 50, 0)
assert ipc(r) >= 0
invariant sim_time_non_negative
given cfg = demo_config(hello_kernel())
assert sim_time_us(cfg, 100000) >= 0
// === Benchmarks ===
bench e2e_latency
measure: nanoseconds for pipe_result_ok(1000, 500, 50)
target: < 100ns
}
// phi^2 + 1/phi^2 = 3 | TRINITY
