Why bridges
You will learn
Why a design grows more than one bus, and what the bridge spec checks of its own state.
A design grows more than one bus because peripherals andcompute differ: a slow register bus for the knobs, a wide one for the data. The bridge spec, FPGA_Bridge, is the crossing of this design, and bridge_initially_idle and bridge_rx_buffers_empty are two of its twenty-one tests. The recording runs t27c check: 0 errors, 0 warnings.
Try it
In the recording, find the error and warning counts; then in the spec frame find the two idle tests and count the spec's tests.

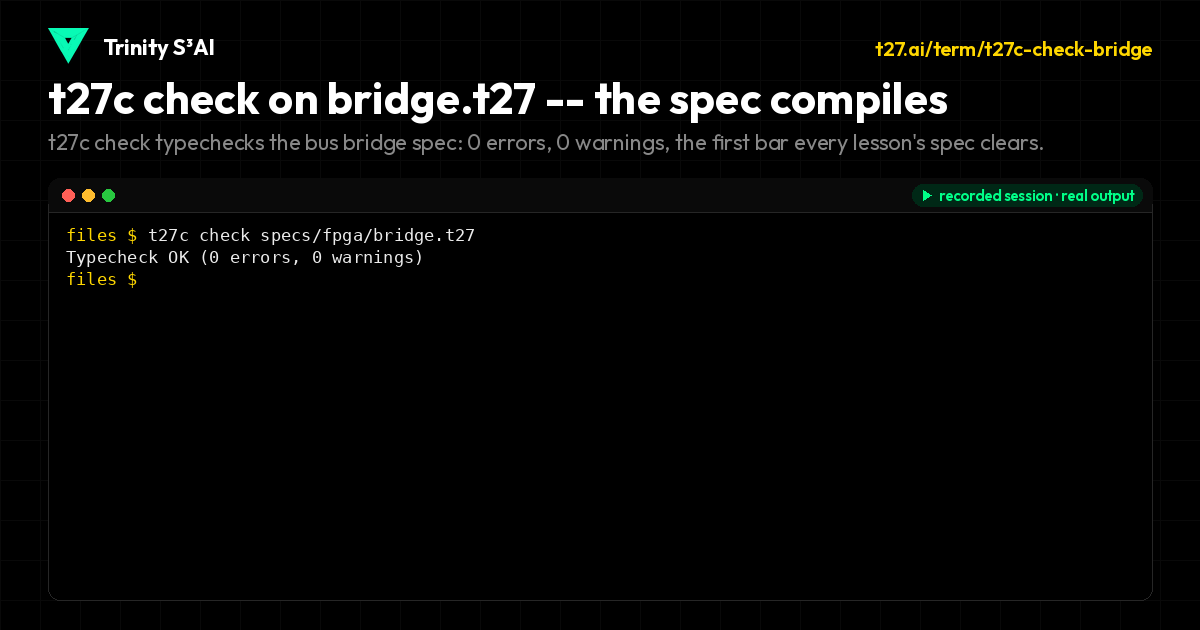

t27c check typechecks the bus bridge spec: 0 errors, 0 warnings, the first bar every lesson's spec clears.
specs/fpga/bridge.t27
// SPDX-License-Identifier: Apache-2.0
// t27/specs/fpga/bridge.t27
// FPGA Communication Bridge Specification
// Combines UART and SPI for host and peripheral communication
// φ² + 1/φ² = 3 | TRINITY
module FPGA_Bridge;
// Import base types and submodules
use base::types;
use fpga::uart::UART_Bridge;
use fpga::spi::SPI_Master;
use fpga::mac::ZeroDSP_MAC;
// ═══════════════════════════════════════════════════════════════
// 1. Bridge Configuration
// ═════════════════════════════════════════════════════════════════════════
// Buffer configuration
const RX_BUFFER_SIZE : usize = 256; // UART RX buffer size
const TX_BUFFER_SIZE : usize = 256; // UART TX buffer size
const SPI_BUFFER_SIZE : usize = 64; // SPI transfer buffer
// Protocol configuration
const MAX_PACKET_SIZE : usize = 128; // Max bytes per packet
const PACKET_TIMEOUT : u32 = 10_000; // 10ms timeout (cycles)
// MAC operation codes (mirrors fpga::mac::ZeroDSP_MAC)
const OP_MAC_MUL : u8 = 0;
const OP_MAC_MAC : u8 = 1;
const OP_MAC_MACC : u8 = 2;
const OP_MAC_DOT : u8 = 3;
const NUM_MAC_UNITS : usize = 8;
// ═══════════════════════════════════════════════════════════════
// 2. Bridge State
// ═════════════════════════════════════════════════════════════════════════
// Bridge state machine
const BRIDGE_IDLE : u8 = 0;
const BRIDGE_RX : u8 = 1;
const BRIDGE_PARSE : u8 = 2;
const BRIDGE_TX : u8 = 3;
const BRIDGE_SPI : u8 = 4;
const BRIDGE_MAC : u8 = 5;
// Bridge unit state
struct Bridge_Unit {
state : u8, // Current state
rx_head : usize, // RX buffer head
rx_tail : usize, // RX buffer tail
tx_head : usize, // TX buffer head
tx_tail : usize, // TX buffer tail
tx_bytes : [TX_BUFFER_SIZE]u8, // TX ring storage (struct field: wasm + verilog both accept)
// Packet state
packet_len : u8, // Current packet length
packet_type : u8, // Current packet type
timeout_cnt : u32, // Packet timeout counter
// Mode selection
spi_enabled : bool, // SPI peripheral mode
mac_enabled : bool, // MAC operation mode
}
// Initialize bridge
var bridge : Bridge_Unit = Bridge_Unit{
.state = BRIDGE_IDLE,
.rx_head = 0,
.rx_tail = 0,
.tx_head = 0,
.tx_tail = 0,
.tx_bytes = [0u8; TX_BUFFER_SIZE],
.packet_len = 0,
.packet_type = 0,
.timeout_cnt = 0,
.spi_enabled = true,
.mac_enabled = true,
};
// ═══════════════════════════════════════════════════════════════
// 3. Buffer Management
// ═════════════════════════════════════════════════════════════════════════
// RX and TX buffers
var rx_buffer : [RX_BUFFER_SIZE]u8 = [0u8; RX_BUFFER_SIZE];
// buffer_write(buf: []u8, size: usize, head: usize, data: u8) → bool
// Write byte to circular buffer
fn buffer_write(buf_in: []u8, size: usize, head: usize, data: u8) -> bool {
// `head` was never checked against `size`, so a caller one past the end
// wrote out of bounds: in the generated Rust that panics, and in C the
// signature is `bool buffer_write(uint8_t* buf_in, size_t size, size_t
// head, uint8_t data)` -- a bare pointer, so the write simply happens.
// The sibling `buffer_read` in this same file guards its index; this
// one did not, and an asymmetry inside one file is an oversight rather
// than a convention.
//
// The bound uses `size`, not `buf_in.len`, deliberately: a `[]T` loses
// its length at the C ABI, so a `.len`-based guard would exist in the
// Rust and Zig outputs and be absent from C (#3428).
if (head >= size) {
return false;
}
const new_head = (head + 1) % size;
if (new_head == 0 && head == size - 1) {
return false; // Buffer full
}
buf_in[head] = data;
return true;
}
// buffer_read(buf: []u8, size: usize, tail: usize) → (u8, usize)
// Read byte from circular buffer, return (data, new_tail)
fn buffer_read(buf: []u8, size: usize, tail: usize) -> (u8, usize) {
// `>=`, not `==`: the equality caught the one-past-the-end case and
// let every larger index through to `buf[tail]`.
if (tail >= size) {
return (0u8, 0);
}
const data = buf[tail];
const new_tail = (tail + 1) % size;
return (data, new_tail);
}
// buffer_count(head: usize, tail: usize, size: usize) → usize
// Count bytes in circular buffer
fn buffer_count(head: usize, tail: usize, size: usize) -> usize {
if (head >= tail) {
return head - tail;
} else {
return head + size - tail;
}
}
// bridge_rx_available() → usize
// Get available bytes in RX buffer
fn bridge_rx_available() -> usize {
return buffer_count(bridge.rx_head, bridge.rx_tail, RX_BUFFER_SIZE);
}
// bridge_tx_space() → usize
// Get available space in TX buffer
fn bridge_tx_space() -> usize {
return TX_BUFFER_SIZE - buffer_count(bridge.tx_head, bridge.tx_tail, TX_BUFFER_SIZE);
}
// ═══════════════════════════════════════════════════════════════
// 4. Packet Protocol
// ═════════════════════════════════════════════════════════════════════════
// Packet types
const PKT_UART_DATA : u8 = 0x00;
const PKT_SPI_XFER : u8 = 0x10;
const PKT_MAC_OP : u8 = 0x20;
const PKT_STATUS : u8 = 0x30;
const PKT_CONFIG : u8 = 0x40;
// Packet format: [TYPE][LEN][DATA...][CRC]
// bridge_parse_header() → bool
// Parse packet header from RX buffer
fn bridge_parse_header() -> bool {
if (bridge_rx_available() < 2) {
return false;
}
const ptype = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
const plen = buffer_read(rx_buffer, RX_BUFFER_SIZE, ptype);
bridge.rx_tail = plen;
bridge.packet_type = ptype;
bridge.packet_len = plen;
// Validate packet
if (plen > MAX_PACKET_SIZE) {
return false; // Invalid length
}
bridge.state = BRIDGE_PARSE;
bridge.timeout_cnt = 0;
return true;
}
// bridge_process_payload() → bool
// Process packet payload based on type
fn bridge_process_payload() -> bool {
if (bridge_rx_available() < bridge.packet_len as usize) {
// Wait for more data
bridge.timeout_cnt = bridge.timeout_cnt + 1;
if (bridge.timeout_cnt > PACKET_TIMEOUT) {
// Timeout, reset to idle
bridge.state = BRIDGE_IDLE;
bridge.rx_tail = bridge.rx_head; // Clear buffer
}
return false;
}
// Dispatch by packet type. Was a `match` STATEMENT, which the parser
// has never supported -- the whole dispatch was silently DROPPED from
// the generated Verilog (t27#1940 hardening surfaced it).
if (bridge.packet_type == PKT_UART_DATA) {
bridge_handle_uart_data();
} else if (bridge.packet_type == PKT_SPI_XFER) {
bridge_handle_spi_xfer();
} else if (bridge.packet_type == PKT_MAC_OP) {
bridge_handle_mac_op();
} else if (bridge.packet_type == PKT_STATUS) {
bridge_handle_status();
} else if (bridge.packet_type == PKT_CONFIG) {
bridge_handle_config();
} else {
// Unknown packet type
bridge.state = BRIDGE_IDLE;
bridge.rx_tail = bridge.rx_head;
return false;
}
bridge.state = BRIDGE_IDLE;
return true;
}
// ═══════════════════════════════════════════════════════════════
// 5. Packet Handlers
// ═════════════════════════════════════════════════════════════════════════
// bridge_handle_uart_data() → void
// Handle UART data packet (echo back)
fn bridge_handle_uart_data() -> void {
var i : usize = 0;
while (i < bridge.packet_len as usize) {
const result_read = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
const data = result_read;
bridge.rx_tail = result_read;
// Echo back via TX
if (bridge_tx_space() > 0) {
const ok = true;
const new_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
bridge.tx_bytes[bridge.tx_head] = data;
bridge.tx_head = new_head;
}
i = i + 1;
}
}
// bridge_handle_spi_xfer() → void
// Handle SPI transfer packet
fn bridge_handle_spi_xfer() -> void {
if (!bridge.spi_enabled || spi_is_busy()) {
return;
}
const cs_sel = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
const data_l = buffer_read(rx_buffer, RX_BUFFER_SIZE, cs_sel);
const data_h = buffer_read(rx_buffer, RX_BUFFER_SIZE, data_l);
bridge.rx_tail = data_h;
const data = (data_h as u32) << 8 | data_l as u32;
if (spi_transfer(data)) {
// Transfer started, will complete asynchronously
}
}
// bridge_handle_mac_op() → void
// Handle MAC operation packet
// Packet format: [OP][UNIT][A_L][A_H][B_L][B_H]
// OP: MAC opcode (0=mul, 1=mac, 2=macc, 3=dot)
// UNIT: MAC unit index (0..7)
// A_L,A_H: operand A (low/high byte of 16-bit value)
// B_L,B_H: operand B (low/high byte of 16-bit value)
fn bridge_handle_mac_op() -> void {
if (!bridge.mac_enabled) {
return;
}
if (bridge_rx_available() < 6) {
return;
}
const op_byte = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = op_byte;
const unit_byte = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = unit_byte;
const a_l = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = a_l;
const a_h = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = a_h;
const b_l = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = b_l;
const b_h = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = b_h;
// Validate unit index
if (unit_byte >= NUM_MAC_UNITS) {
return;
}
// Reconstruct 16-bit operands
const operand_a = (a_h as u16) << 8 | a_l as u16;
const operand_b = (b_h as u16) << 8 | b_l as u16;
// Dispatch MAC operation
if (op_byte == OP_MAC_MUL) {
mac_multiply(operand_a, operand_b, unit_byte);
} else if (op_byte == OP_MAC_MAC) {
mac_cycle(operand_a, operand_b, unit_byte, mac_get_accumulator(unit_byte));
} else if (op_byte == OP_MAC_DOT) {
mac_dot_product([operand_a], [operand_b], 1, unit_byte);
}
// Send result back via TX
if (bridge_tx_space() >= 4) {
const acc = mac_get_accumulator(unit_byte) as u32;
bridge.tx_bytes[bridge.tx_head] = (acc & 0xFF) as u8;
bridge.tx_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
bridge.tx_bytes[bridge.tx_head] = ((acc >> 8) & 0xFF) as u8;
bridge.tx_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
bridge.tx_bytes[bridge.tx_head] = ((acc >> 16) & 0xFF) as u8;
bridge.tx_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
bridge.tx_bytes[bridge.tx_head] = ((acc >> 24) & 0xFF) as u8;
bridge.tx_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
}
}
// bridge_handle_status() → void
// Handle status request
fn bridge_handle_status() -> void {
// Send status response
const status = [
if (bridge.spi_enabled) { 1u8 } else { 0u8 },
if (bridge.mac_enabled) { 1u8 } else { 0u8 },
0u8, 0u8, // Reserved
];
var i : usize = 0;
while (i < 4) {
if (bridge_tx_space() > 0) {
bridge.tx_bytes[bridge.tx_head] = status[i];
bridge.tx_head = (bridge.tx_head + 1) % TX_BUFFER_SIZE;
}
i = i + 1;
}
}
// bridge_handle_config() → void
// Handle configuration packet
fn bridge_handle_config() -> void {
const cfg_byte = buffer_read(rx_buffer, RX_BUFFER_SIZE, bridge.rx_tail);
bridge.rx_tail = cfg_byte;
// Bit 0: SPI enable
// Bit 1: MAC enable
bridge.spi_enabled = (cfg_byte & 0x01) != 0;
bridge.mac_enabled = (cfg_byte & 0x02) != 0;
}
// ═══════════════════════════════════════════════════════════════════════════════════════════
// TDD-Inside-Spec: Tests and Invariants for FPGA_Bridge
// ═══════════════════════════════════════════════════════════════════════════════════════════
test bridge_initially_idle
given state = bridge.state
then state == BRIDGE_IDLE
test bridge_rx_buffers_empty
given rx_avail = bridge_rx_available()
then rx_avail == 0
test bridge_tx_buffer_full_space
given tx_space = bridge_tx_space()
then tx_space == TX_BUFFER_SIZE
test bridge_rx_write_success
given result = buffer_write(rx_buffer, RX_BUFFER_SIZE, bridge.rx_head, 0xAA)
then result == true
test bridge_buffer_count_empty
given count = buffer_count(0, 0, RX_BUFFER_SIZE)
then count == 0
test bridge_buffer_count_wrap
given count = buffer_count(RX_BUFFER_SIZE - 1, 0, RX_BUFFER_SIZE)
then count == RX_BUFFER_SIZE - 1
test bridge_buffer_count_wrap2
given count = buffer_count(0, RX_BUFFER_SIZE - 1, RX_BUFFER_SIZE)
then count == 1
test bridge_packet_types_defined
given uart_pkt = PKT_UART_DATA
and spi_pkt = PKT_SPI_XFER
and mac_pkt = PKT_MAC_OP
then uart_pkt == 0x00 and spi_pkt == 0x10 and mac_pkt == 0x20
test bridge_max_packet_size
given max_pkt = MAX_PACKET_SIZE
then max_pkt == 128
test bridge_timeout_defined
given timeout = PACKET_TIMEOUT
then timeout == 10_000
test bridge_rx_tx_buffer_sizes
given rx_size = RX_BUFFER_SIZE
and tx_size = TX_BUFFER_SIZE
then rx_size == 256 and tx_size == 256
test bridge_spi_enabled_by_default
given spi_en = bridge.spi_enabled
and mac_en = bridge.mac_enabled
then spi_en == true and mac_en == true
test bridge_parse_header_requires_2_bytes
given bridge_rx_available() == 1
and result = bridge_parse_header()
then result == false
test bridge_config_enables_spi
given bridge.handle_config(0x01)
then bridge.spi_enabled == true
test bridge_config_enables_mac
given bridge.handle_config(0x02)
then bridge.mac_enabled == true
test bridge_config_disables_spi
given bridge.handle_config(0x00)
then bridge.spi_enabled == false
test bridge_mac_opcodes_defined
given mul_op = OP_MAC_MUL
and mac_op = OP_MAC_MAC
and macc_op = OP_MAC_MACC
and dot_op = OP_MAC_DOT
then mul_op == 0 and mac_op == 1 and macc_op == 2 and dot_op == 3
test bridge_mac_unit_count
given units = NUM_MAC_UNITS
then units == 8
test bridge_mac_handler_disabled_when_mac_off
given bridge.mac_enabled = false
and bridge_handle_mac_op()
then bridge.state == BRIDGE_IDLE
test bridge_mac_handler_rejects_insufficient_data
given bridge.mac_enabled = true
and bridge_rx_available() == 3
and bridge_handle_mac_op()
then bridge.state == BRIDGE_IDLE
test bridge_mac_handler_rejects_invalid_unit
given bridge.mac_enabled = true
and bridge_rx_available() >= 6
and rx_buffer[bridge.rx_tail + 1] == 8
and bridge_handle_mac_op()
then mac_get_accumulator(0) == 0
invariant bridge_states_valid
given state = bridge.state
assert state == BRIDGE_IDLE or state == BRIDGE_RX or state == BRIDGE_PARSE
or state == BRIDGE_TX or state == BRIDGE_SPI or state == BRIDGE_MAC
invariant bridge_rx_tail_never_exceeds_head
// Circular buffer invariant
assert bridge.rx_head < RX_BUFFER_SIZE and bridge.rx_tail < RX_BUFFER_SIZE
invariant bridge_tx_tail_never_exceeds_head
assert bridge.tx_head < TX_BUFFER_SIZE and bridge.tx_tail < TX_BUFFER_SIZE
invariant bridge_rx_available_bounds
given avail = bridge_rx_available()
assert avail <= RX_BUFFER_SIZE
invariant bridge_tx_space_bounds
given space = bridge_tx_space()
assert space <= TX_BUFFER_SIZE
invariant bridge_packet_length_bounds
given plen = bridge.packet_len
assert plen <= MAX_PACKET_SIZE
invariant bridge_timeout_counter_increments
given old_cnt = bridge.timeout_cnt
when bridge.state == BRIDGE_PARSE and bridge_process_payload() == false
then bridge.timeout_cnt >= old_cnt
invariant bridge_timeout_resets_on_expiration
given bridge.timeout_cnt = PACKET_TIMEOUT + 1
and bridge.state == BRIDGE_PARSE
when bridge_process_payload() == false
then bridge.state == BRIDGE_IDLE
invariant bridge_config_affects_flags
given old_spi = bridge.spi_enabled
and old_mac = bridge.mac_enabled
when bridge.handle_config(0x03)
then (bridge.spi_enabled || !bridge.spi_enabled) // May have changed
invariant bridge_modes_mutable
assert true // SPI and MAC can be toggled at runtime
bench bridge_rx_write_latency
measure: nanoseconds to buffer_write(rx_buffer, RX_BUFFER_SIZE, bridge.rx_head, 0xAA)
target: < 50ns
bench bridge_tx_read_latency
measure: nanoseconds to buffer_read(bridge.tx_bytes, TX_BUFFER_SIZE, bridge.tx_tail)
target: < 50ns
bench bridge_parse_header_latency
measure: nanoseconds to bridge_parse_header() when 2 bytes available
target: < 200ns
bench bridge_packet_processing_latency
measure: nanoseconds to process PKT_STATUS packet
target: < 500ns
All lessons
Module 1 · What a bus is
Why a bus exists at all: a conversation on wires, framed and addressed, and who is allowed to talk.
Module 2 · UART
The two-wire bus with no clock: the frame, the divisor that sets the rate, and the status a driver polls.
Module 3 · SPI
The clocked conversation: four modes, a prescaler ladder, and a chip select per servant.
Module 4 · APB
The register bus: PSEL and PENABLE, strobes and wait states, and how many address bits a peripheral count costs.
Module 5 · AXI4
The five channels: address, data and response in both directions, lite or full, bursts and IDs.
Module 6 · Memory
What sits on the far side of every bus: memory maps, port kinds, and latency that a wait state must cover.
Module 7 · Bridges
Why designs grow more than one bus, and the packet bridge that moves work between them.
Module 8 · Ethernet
Frames, the frame check sequence, RGMII timing, and the pre-registered steps of a real bring-up.
Module 9 · The bench
The discipline that guards real hardware: who holds the IO, taking and giving the lock, and what runs next.
