Sync or async

You will learn

The three reset kinds, which one races the clock, and the shape the course recommends.

Try it

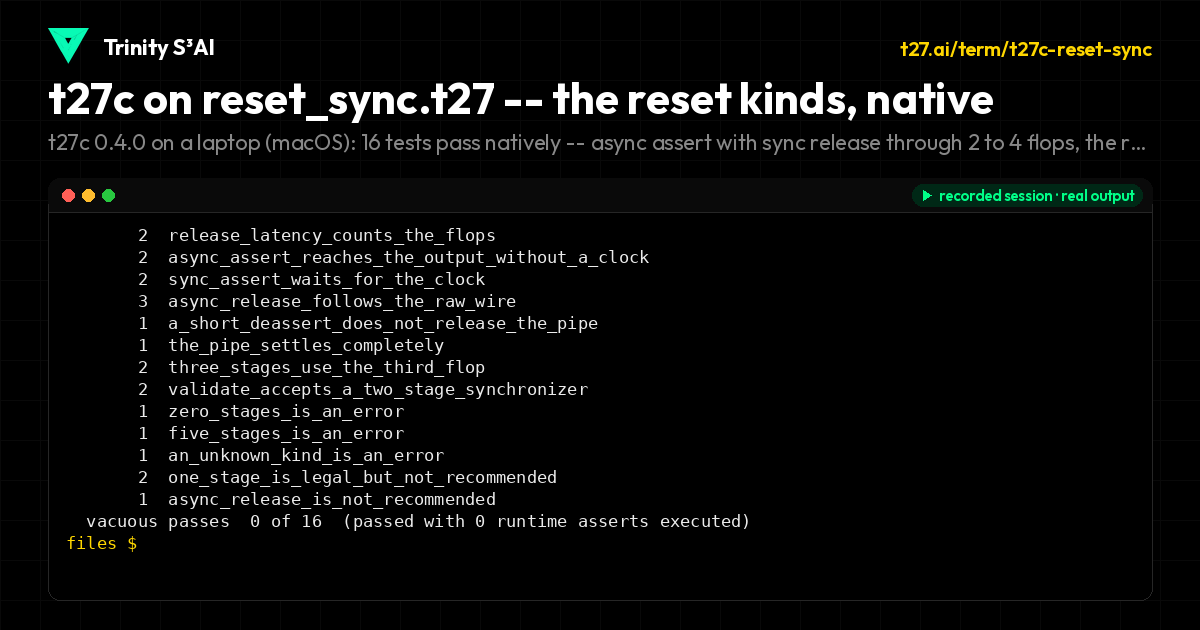

In the recording, find the test that calls async release racy; then in the spec frame read is_recommended() and check what it requires of kind and stages.

specs/fpga/reset_sync.t27

// SPDX-License-Identifier: Apache-2.0
// t27/specs/fpga/reset_sync.t27
// Reset synchronizer model for Trinity T27 FPGA HIR
// Three reset kinds, a shift-register model of the release path
// phi^2 + 1/phi^2 = 3 | TRINITY
//
// THE RULE THIS FILE TEACHES. A reset may assert asynchronously (the board
// does not wait for your clock) but must release synchronously: the release
// edge is captured by the destination clock and walked through a small shift
// register of 2 or more flops. A reset that releases asynchronously races the
// clock at every flip-flop it feeds and violates recovery/removal timing, so
// kind 2 below (async assert, async release) is legal hardware but not a
// recommended reset. The flop count is capped at 4 because the shift register
// is drawn one flop per field (d0..d3), and 2 to 4 stages covers the range a
// real design chooses from.

module ResetSync {

    // === Reset kinds ===

    pub const ResetKind = enum(i8) {
        sync = 0,                    // assert and release both through the clock
        async_assert_sync_release = 1, // assert immediate, release through the pipe
        async_assert_async_release = 2, // assert and release both immediate: races
    }

    // === Reset synchronizer configuration ===

    pub struct ResetSyncConfig {
        name : &str,
        kind : i8,
        stages : u32,
    }

    fn reset_sync(name: &str, kind: i8, stages: u32) -> ResetSyncConfig {
        return ResetSyncConfig{
            .name = name,
            .kind = kind,
            .stages = stages,
        };
    }

    // === Shift-register state (one bool per flop, d0 nearest the input) ===

    pub struct SyncState {
        d0 : bool,
        d1 : bool,
        d2 : bool,
        d3 : bool,
    }

    fn asserted_state() -> SyncState {
        return SyncState{ .d0 = true, .d1 = true, .d2 = true, .d3 = true };
    }

    fn released_state() -> SyncState {
        return SyncState{ .d0 = false, .d1 = false, .d2 = false, .d3 = false };
    }

    // One destination clock: every flop takes its neighbour's value
    fn step(s: SyncState, din: bool) -> SyncState {
        return SyncState{
            .d0 = din,
            .d1 = s.d0,
            .d2 = s.d1,
            .d3 = s.d2,
        };
    }

    // Run the pipe with the input released, as a clean reset release does
    fn after_clocks(s: SyncState, clocks: u32) -> SyncState {
        var r : SyncState = s;
        var i : u32 = 0;
        while i < clocks {
            r = step(r, false);
            i = i + 1;
        }
        return r;
    }

    fn settled(s: SyncState) -> bool {
        return (s.d0 or s.d1 or s.d2 or s.d3) == false;
    }

    // === Kind and timing queries ===

    fn asserts_async(cfg: ResetSyncConfig) -> bool {
        return (cfg.kind == 1) or (cfg.kind == 2);
    }

    fn releases_async(cfg: ResetSyncConfig) -> bool {
        return cfg.kind == 2;
    }

    // The flop the sync path reads: stage 1 is d0, stage 2 is d1, and so on
    fn pipe_output(s: SyncState, cfg: ResetSyncConfig) -> bool {
        if cfg.stages == 1 {
            return s.d0;
        }
        if cfg.stages == 2 {
            return s.d1;
        }
        if cfg.stages == 3 {
            return s.d2;
        }
        return s.d3;
    }

    // The reset seen by the logic, given the pipe state and the raw input
    fn reset_out(cfg: ResetSyncConfig, s: SyncState, raw_in: bool) -> bool {
        if cfg.kind == 2 {
            // Async release: the raw wire is the reset, glitches and all
            return raw_in;
        }
        if cfg.kind == 1 {
            // Async assert: the raw wire asserts at once; the pipe releases
            return raw_in or pipe_output(s, cfg);
        }
        // Sync reset: the pipe alone decides, assert and release both clocked
        return pipe_output(s, cfg);
    }

    // Cycles from a released input to a released output
    fn release_latency_cycles(cfg: ResetSyncConfig) -> u32 {
        return cfg.stages;
    }

    // === Validation ===

    fn validate_rst(cfg: ResetSyncConfig) -> u32 {
        var errors : u32 = 0;

        if cfg.name == "" {
            errors = errors + 1;
        }
        if cfg.kind < 0 or cfg.kind > 2 {
            errors = errors + 1;
        }
        if cfg.stages < 1 or cfg.stages > 4 {
            errors = errors + 1;
        }

        return errors;
    }

    // The shape the course recommends: release through at least two flops
    fn is_recommended(cfg: ResetSyncConfig) -> bool {
        return (cfg.kind == 0 or cfg.kind == 1) and cfg.stages >= 2;
    }

    // === Tests ===

    test the_pipe_shifts_one_flop_per_clock
        given s1 = step(released_state(), true)
        then s1.d0 == true
        and s1.d1 == false
        and s1.d2 == false

    test the_pipe_carries_the_release_downstream
        given s1 = step(asserted_state(), false)
        and s2 = step(s1, false)
        then s1.d0 == false
        and s1.d1 == true
        and s2.d0 == false
        and s2.d1 == false

    test a_two_stage_release_takes_two_clocks
        given cfg = reset_sync("sys_rst", 1, 2)
        and one = after_clocks(asserted_state(), 1)
        and two = after_clocks(asserted_state(), 2)
        then reset_out(cfg, one, false) == true
        and reset_out(cfg, two, false) == false

    test release_latency_counts_the_flops
        given cfg2 = reset_sync("two", 1, 2)
        and cfg3 = reset_sync("three", 1, 3)
        then release_latency_cycles(cfg2) == 2
        and release_latency_cycles(cfg3) == 3

    test async_assert_reaches_the_output_without_a_clock
        given cfg = reset_sync("sys_rst", 1, 2)
        then reset_out(cfg, released_state(), true) == true
        and asserts_async(cfg) == true

    test sync_assert_waits_for_the_clock
        given cfg = reset_sync("sys_rst", 0, 2)
        then reset_out(cfg, released_state(), true) == false
        and asserts_async(cfg) == false

    test async_release_follows_the_raw_wire
        given cfg = reset_sync("racy", 2, 2)
        then reset_out(cfg, asserted_state(), false) == false
        and reset_out(cfg, released_state(), true) == true
        and releases_async(cfg) == true

    test a_short_deassert_does_not_release_the_pipe
        given cfg = reset_sync("sys_rst", 1, 2)
        and glitch = step(asserted_state(), false)
        then reset_out(cfg, glitch, false) == true

    test the_pipe_settles_completely
        given s = after_clocks(asserted_state(), 4)
        then settled(s) == true

    test three_stages_use_the_third_flop
        given cfg = reset_sync("three", 0, 3)
        and s1 = step(step(step(released_state(), true), false), false)
        then pipe_output(s1, cfg) == true
        and reset_out(cfg, s1, false) == true

    test validate_accepts_a_two_stage_synchronizer
        given cfg = reset_sync("sys_rst", 1, 2)
        then validate_rst(cfg) == 0
        and is_recommended(cfg) == true

    test zero_stages_is_an_error
        given cfg = reset_sync("zero", 1, 0)
        then validate_rst(cfg) > 0

    test five_stages_is_an_error
        given cfg = reset_sync("five", 1, 5)
        then validate_rst(cfg) > 0

    test an_unknown_kind_is_an_error
        given cfg = reset_sync("weird", 3, 2)
        then validate_rst(cfg) > 0

    test one_stage_is_legal_but_not_recommended
        given cfg = reset_sync("thin", 1, 1)
        then validate_rst(cfg) == 0
        and is_recommended(cfg) == false

    test async_release_is_not_recommended
        given cfg = reset_sync("racy", 2, 2)
        then is_recommended(cfg) == false

    // === Invariants ===

    invariant the_release_always_settles
        given s = after_clocks(asserted_state(), 4)
        assert settled(s) == true

    invariant the_pipe_holds_the_reset_while_it_shifts
        given cfg = reset_sync("inv", 1, 2)
        and s = after_clocks(asserted_state(), 1)
        assert reset_out(cfg, s, false) == true

    invariant sync_reset_cannot_jump_the_pipe
        given cfg = reset_sync("inv", 0, 2)
        assert reset_out(cfg, released_state(), true) == false

    // === Benchmarks ===

    bench step_latency
        measure: nanoseconds to step(asserted_state(), true)
        target: < 10ns
}

// phi^2 + 1/phi^2 = 3 | TRINITY

Open the lesson's spec in the player ↗
