The release pipe
You will learn
How a reset release walks a shift register, and what the compiler emits for it.

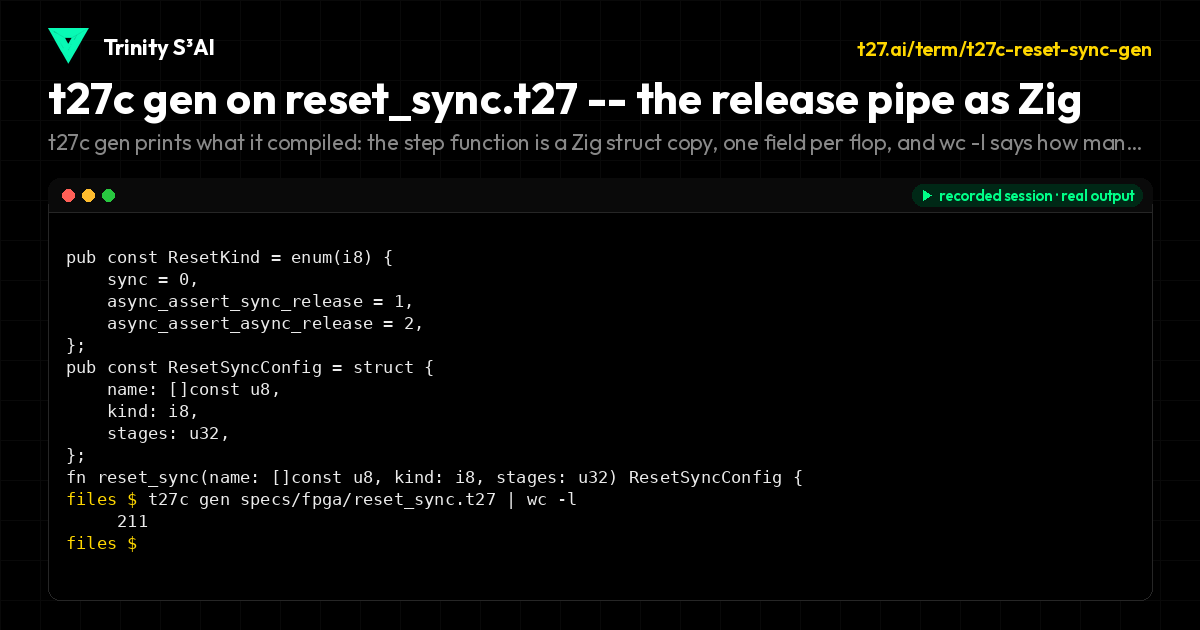

The release walks a shift register: at the destination clock, flop after flop takes its neighbour's value, and the reset is held until the pipe runs dry. The latency is the stage count -- 2 stages release in 2 clocks, 3 in 3. The recording shows what the compiler emits for the model: t27c gen prints the Zig, and the step function is a struct copy, one field per flop, no more. The wc -l at the end of the recording is the size of the whole generated model.
