You will learn

When the analyzer checks a path between two clocks and when it must be told they are strangers.

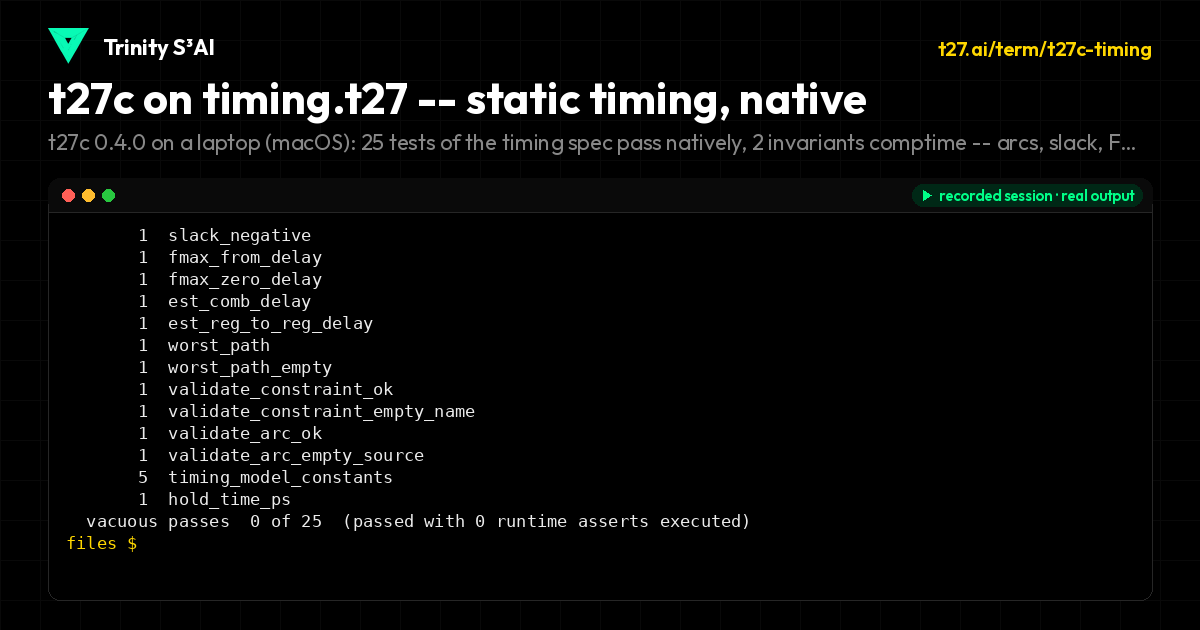

Two clocks are related when one is made from the other -- through the MMCM of module 3 -- and then every path between them is timed: the analyzer knows they share an origin. Strangers get no such path check unless you declare one. timing.t27 is the arithmetic of that check: timing arcs, slack and Fmax with an Artix-7 teaching model, LUT 0.1 ns, BRAM 2.0 ns, DSP 2.5 ns, routing 0.3 ns. The recording runs the native t27c: 25 tests pass, 2 invariants comptime. Related clocks were module 3; making strangers safe is modules 5 to 7.
