A whole network
You will learn
How the pieces of this course fit into one small network, and what its tests and its Verilog still leave open.
mlp2 in bitnet_mlp.t27 is a whole network: 3 neurons read the input, pack3 packs their 3 trits into a hidden chunk, and 2 neurons turn it into 2 output trits. The course went from number formats and arithmetic to a neuron, training, ternary weights and the chip; here are the neuron, the weights and an on_comb entry, and no training. The native t27c runs all 4 tests, all pass, none vacuous; the browser skips them, and none calls mlp2. The generated Verilog marks the chunk loop in neuronN NOT UNROLLED, and its note says yosys rejects it, so it is not yet a chip. The recording moves the third hidden trit from bit 4 to bit 3 on line 39, and exactly one test fails, pack3_zzz. Every byte in the recording was printed by the command; only the typing is staged.
Try it
In the recording, find the pack3 line before and after the change; then in the spec frame open Code, pick verilog and find the loop in neuronN marked NOT UNROLLED.

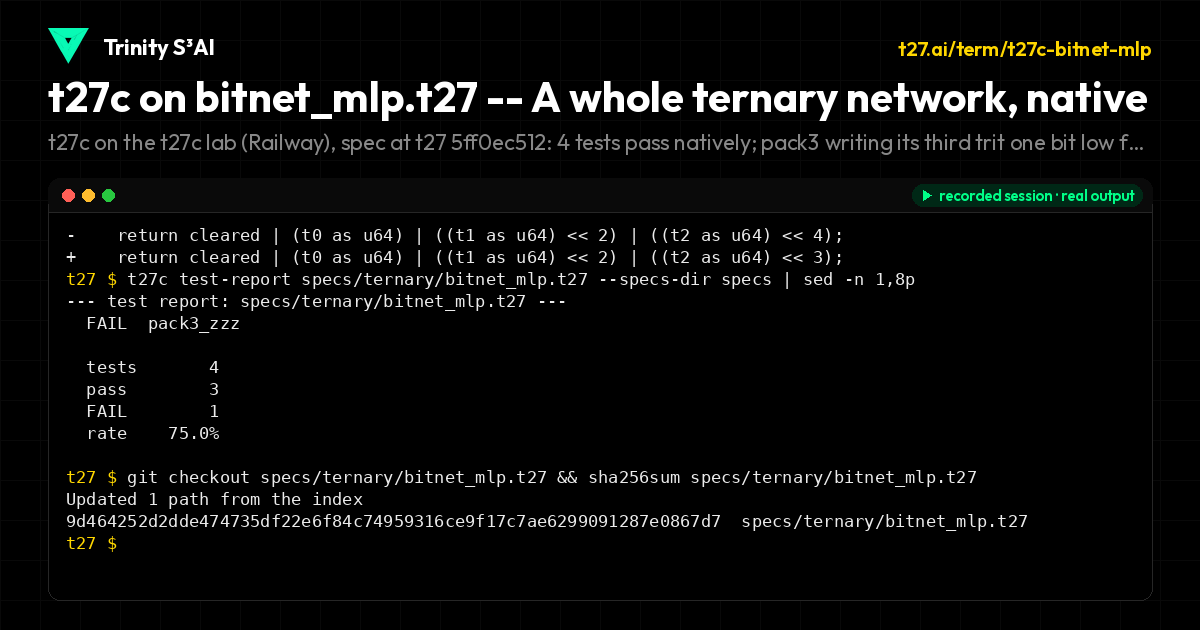

t27c on the t27c lab (Railway), spec at t27 5ff0ec512: 4 tests pass natively; pack3 writing its third trit one bit low fails exactly one test, pack3_zzz; git restores the spec.
specs/ternary/bitnet_mlp.t27
module BitnetMlp;
fn tmul(ta: u8, tb: u8) -> i8 {
if (ta == 1) { return 0; }
if (tb == 1) { return 0; }
if (ta == tb) { return 1; }
return -1;
}
fn dot27(a: u64, b: u64) -> i16 {
var acc : i16 = 0;
var i : u32 = 0;
while (i < 27) {
var ta : u8 = ((a >> (i << 1)) & 3) as u8;
var tb : u8 = ((b >> (i << 1)) & 3) as u8;
acc = acc + tmul(ta, tb) as i16;
i = i + 1;
}
return acc;
}
fn quantize(v: i16, threshold: i16) -> u8 {
if (v > threshold) { return 2; }
if (v < -threshold) { return 0; }
return 1;
}
fn neuronN(acts: [8]u64, weights: [8]u64, nchunks: u32, threshold: i16) -> u8 {
var acc : i16 = 0;
var c : u32 = 0;
while (c < nchunks) {
acc = acc + dot27(acts[c], weights[c]);
c = c + 1;
}
return quantize(acc, threshold);
}
fn neuron1(act: u64, weight: u64, threshold: i16) -> u8 {
return quantize(dot27(act, weight), threshold);
}
fn pack3(t0: u8, t1: u8, t2: u8) -> u64 {
var z : u64 = 6004799503160661;
var cleared : u64 = z & 18446744073709551552;
return cleared | (t0 as u64) | ((t1 as u64) << 2) | ((t2 as u64) << 4);
}
// 2-layer BitNet inference. Layer 1: 3 neurons over the input activations
// (l1chunks chunks) -> 3 trits packed into one hidden chunk. Layer 2: 2
// single-chunk neurons over that hidden chunk -> 2 packed output trits.
pub fn mlp2(acts: [8]u64, wa0: [8]u64, wa1: [8]u64, wa2: [8]u64, wb0: u64, wb1: u64, l1chunks: u32, threshold: i16) -> u8 {
var t0 : u8 = neuronN(acts, wa0, l1chunks, threshold);
var t1 : u8 = neuronN(acts, wa1, l1chunks, threshold);
var t2 : u8 = neuronN(acts, wa2, l1chunks, threshold);
var h : u64 = pack3(t0, t1, t2);
var o0 : u8 = neuron1(h, wb0, threshold);
var o1 : u8 = neuron1(h, wb1, threshold);
return (o1 << 2) | o0;
}
test dot27_all_n { assert_eq(dot27(0, 0), 27); }
test neuron1_p_p { assert_eq(neuron1(12009599006321322, 12009599006321322, 10), 2); }
test pack3_zzz { assert_eq(pack3(1, 1, 1), 6004799503160661); }
test quantize_band { assert_eq(quantize(5, 10), 1); }
// W699: the hardware boundary, with a width the EMITTER can produce.
//
// W698 accepted `[8]u64` while the port emitter still sized entry ports with
// `type_to_width`, whose last arm is `_ => 32`. This parameter became
// `input wire [31:0]` -- a silent 16x narrowing, and the banner, the census,
// the corpus column and yosys all reported success. It was retracted the same
// wave.
//
// W699 replaced that call with `entry_port_width`, which returns None rather
// than a plausible number and makes the entry point refuse LOUDLY in the
// generated source. Verified end to end: this parameter now emits
// `input wire [511:0]`, and `on_comb` and the function it forwards to both
// take [511:0], so nothing is truncated between the boundary and the body.
fn on_comb(acts: [8]u64, wa0: [8]u64, wa1: [8]u64, wa2: [8]u64, wb0: u64, wb1: u64, l1chunks: u32, threshold: i16) -> u8 { return mlp2(acts, wa0, wa1, wa2, wb0, wb1, l1chunks, threshold); }
endmodule
