GF128: a quad
You will learn

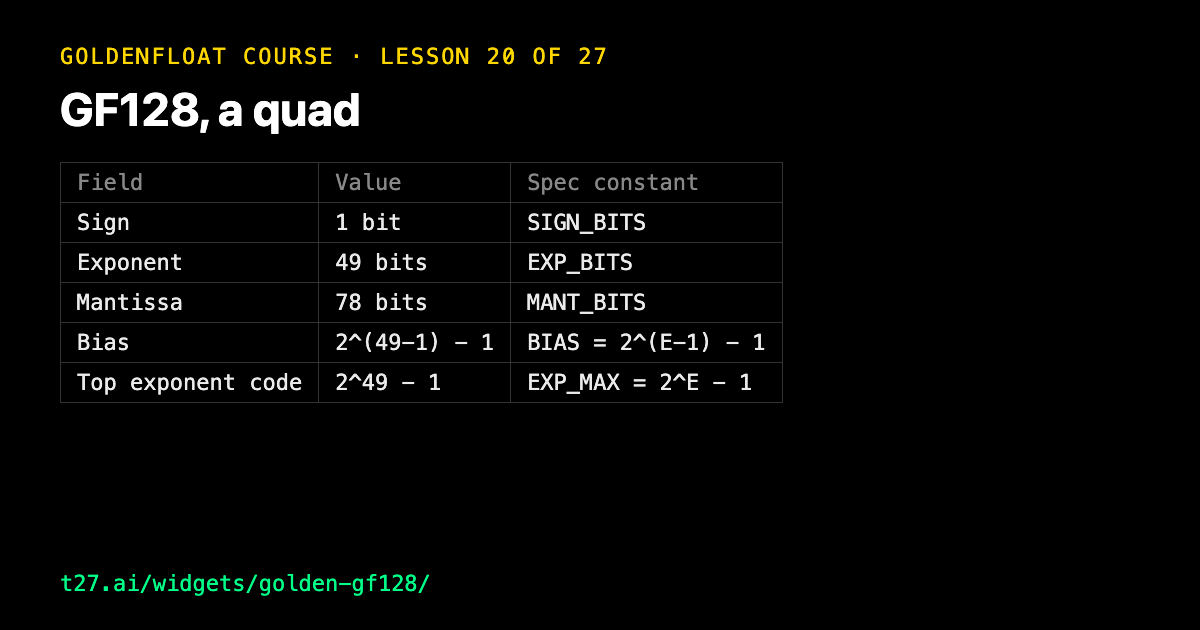

The 128-bit GoldenFloat, 1 + 49 + 78, and the four invariants that hold its layout.
GF128 has 128 bits: 1 sign, 49 exponent, 78 mantissa. IEEE quad spends 15 bits on the exponent. The spec holds the layout with four invariants: the fields partition the word, the mantissa and the exponent follow the closed form, and the shifts follow the layout.
Try it
Read the four invariants of gf128.t27 and check SIGN_SHIFT and EXP_SHIFT against the field widths by hand.
GF128: 128 bits as the spec lays them out, read from gf128.t27. Lesson 20 of the GoldenFloat course.
specs/numeric/gf128.t27
// SPDX-License-Identifier: Apache-2.0
; gf128.t27 -- GoldenFloat128 Encode/Decode
; GF128: 128-bit floating point with 1 sign + 49 exponent + 78 mantissa
; Bit layout: [S(1) E(49) M(78)] = [127:127][126:78][77:0]
; phi^2 + 1/phi^2 = 3 | TRINITY
; Generated by the closed-form rule e = round((N-1)/phi^2), m = N-1-e.
; STATUS: Conj (spec-only; no RTL on this repo's path).
module triformat-gf128;
// ============================================================================
// Constants -- derived from the closed-form rule
// ============================================================================
pub const TOTAL_BITS : u16 = 128;
pub const SIGN_BITS : u8 = 1;
pub const EXP_BITS : u8 = 49;
pub const MANT_BITS : u16 = 78;
pub const SIGN_SHIFT : u16 = 127;
pub const EXP_SHIFT : u16 = 78;
pub const MANT_SHIFT : u16 = 0;
; BIAS = 2^(48) - 1 -- multi-word constant (exceeds u64); see codegen
; EXP_MAX = 2^49 - 1 -- multi-word constant (exceeds u64)
pub const BIAS_EXPR : str = "2^(49-1) - 1";
pub const EXP_MAX_EXPR : str = "2^49 - 1";
// E/M ratio (target: 1/phi ~ 0.6180339887)
pub const EM_RATIO : f64 = 0.628205128205;
pub const PHI_DIST : f64 = 0.010171139455;
pub const PHI_BIAS_STATUS : str = "OPEN -- not derivable from closed form; empirical per format";
// PHI_BIAS for this rung is NOT defined. The published formula
// PHI_BIAS = EXP_MAX - BIAS reproduces GF64 only and is RETRACTED as a general law.
// Do NOT invent a value via Fibonacci/Lucas/square coincidence; those are
// descriptive, not prescriptive.
// ============================================================================
// Invariants -- the Fpath below, made executable (W601)
//
// This file declared its own falsification path in a comment and nothing
// checked it. W600's per-test measurement found 38 specs that compile while
// asserting nothing; this is one, and the rule it is derived from is stated
// precisely enough to be a test.
// ============================================================================
invariant gf128_field_widths_partition_the_word {
@compileAssert(SIGN_BITS + EXP_BITS + MANT_BITS == TOTAL_BITS);
}
invariant gf128_closed_form_mantissa {
// m = N - 1 - e, the second half of the generating rule
@compileAssert(MANT_BITS == TOTAL_BITS - 1 - EXP_BITS);
}
invariant gf128_closed_form_exponent {
// e = round((N-1)/phi^2) <=> (e - 1/2)*phi^2 <= N-1 <= (e + 1/2)*phi^2
// Stated as bounds because the rule rounds; phi^2 = 2.618033988749895.
@compileAssert((EXP_BITS as f64 - 0.5) * 2.618033988749895 <= TOTAL_BITS as f64 - 1.0);
@compileAssert(TOTAL_BITS as f64 - 1.0 <= (EXP_BITS as f64 + 0.5) * 2.618033988749895);
}
invariant gf128_shifts_follow_the_layout {
@compileAssert(SIGN_SHIFT == TOTAL_BITS - 1);
@compileAssert(EXP_SHIFT == MANT_BITS);
@compileAssert(MANT_SHIFT == 0);
}
; ============================================================================
; Claim-status: Conj
; Fpath: closed-form rule mis-applied (verify e = round((128-1)/phi^2) = 49, m = 78)
; or RTL emission diverges from this constant set.
; As of W601 the Fpath above is CHECKED by the invariants in this file.
; ============================================================================
