Три числа сразу
Вы узнаете
Как счётчики 3:2 складывают много чисел почти без распространения переноса и сколько слоёв нужно для k чисел.
Счётчик 3:2 — это ряд полных сумматоров без связей между ними: на входе три числа, на выходе слово суммы и слово переноса, и эти два в сумме дают те три. Слои таких счётчиков сжимают k чисел до двух, а затем их доскладывает один обычный сумматор. Высоты Дадды 2, 3, 4, 6, 9, 13, 19, 28, 42, 63 — наибольшее число слагаемых, которое сводит каждое количество слоёв, поэтому 9 числам нужно 4 слоя, а 64 — 10. Для 9 чисел по 16 бит это 20 задержек полного сумматора против 128 у цепочки сумматоров.
Попробовать
Задайте 28 чисел, а затем 29: сколько слоёв нужно каждому и почему одно лишнее число стоит слоя? Затем проверьте в счётчике ниже, что сумма + перенос равны a + b + c.

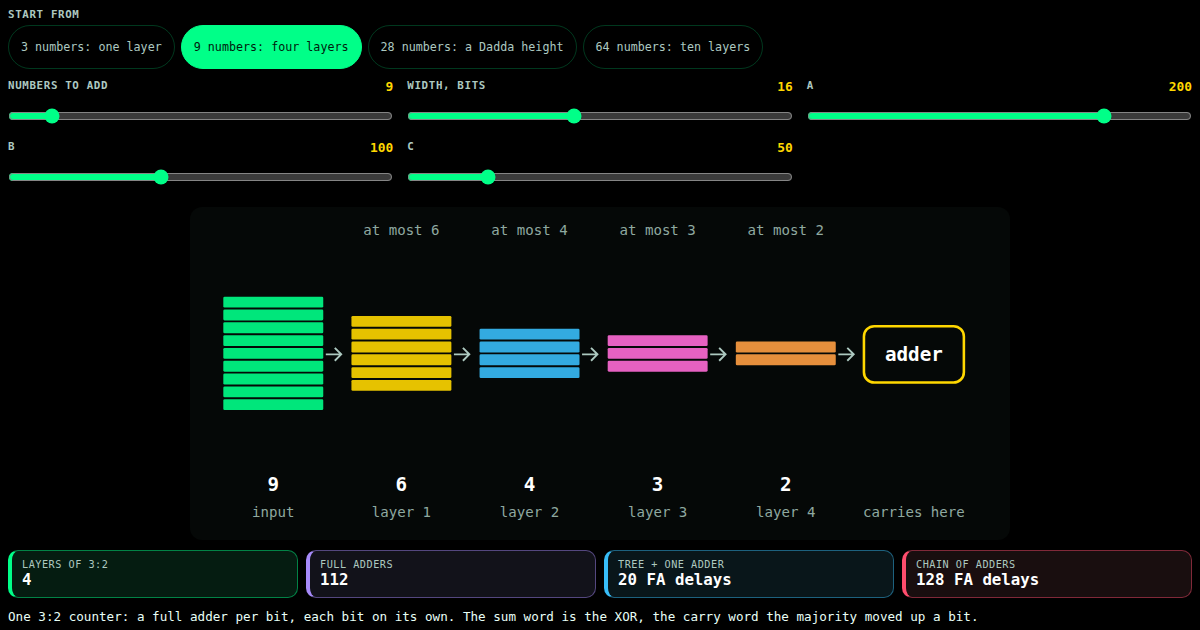

Set how many numbers to add and watch 3:2 counters squeeze them to two, layer by layer, before a single carry-propagate adder. Then try one counter on three numbers.
specs/fpga/dsp/adders.t27
// SPDX-License-Identifier: Apache-2.0
// specs/fpga/dsp/adders.t27 -- adding numbers in hardware: the carry chain, prefix networks, carry-save trees
// Host: gHashTag/trinity apps/website public/widgets/{carry-chain,prefix-adder,csa-tree}/ (module 1 of the
// course arithmetic-and-dsp): each widget's logic.js is these fn bodies compiled to wasm
// (scripts/t27-logic.mjs in gHashTag/999-multibots-telegraf, types stripped); the pages
// write no formula of their own.
//
// THE CARRY CHAIN. Bit i of a + b is a_i XOR b_i XOR c_i, and the carry out of bit i is the
// majority of a_i, b_i and c_i (c_0 = 0). A carry generated at one bit travels up through every
// bit that propagates it (a_i XOR b_i = 1), so the wait for the top bit grows with the width.
// The FPGA answer is a dedicated chain: one LUT per bit forms propagate and generate, and the
// carry then hops through a multiplexer per bit with no general routing between bits. On a
// 7-series device the chain comes in CARRY4 blocks of 4 bits, one per slice (Xilinx UG474,
// "7 Series FPGAs CLB User Guide", carry logic). The delay model below is the teaching model:
// a carry recomputed by a LUT pays a LUT and a route per bit; the dedicated chain pays one LUT
// and one route, then one hop per bit. Every delay is an input the reader sets; no number here
// is a datasheet figure.
//
// PREFIX NETWORKS (D. Harris, "A taxonomy of parallel prefix networks", Asilomar 2003). The
// carries are prefixes of an associative operator, so they can be computed as a tree. src()
// says, for every column i and logic level, which column it combines with (-1: none):
// serial (ripple) level l joins column l+1 to column l n - 1 levels, n - 1 cells
// Sklansky bit l of i set: i joins (i >> l << l) - 1 log2 n levels, (n/2) log2 n cells
// Kogge-Stone i >= 2^l: i joins i - 2^l log2 n levels, n log2 n - n + 1 cells
// Brent-Kung an up-sweep and a down-sweep 2 log2 n - 1 levels, 2n - 2 - log2 n cells
// covers() replays the network on the spans [lo..i] and checks every column ends at [0..i]:
// the network computes every carry, not just the counts.
//
// CARRY-SAVE TREES. A 3:2 counter (a full adder per bit) turns three numbers into two -- a sum
// word a ^ b ^ c and a carry word majority(a, b, c) << 1 -- with no carry propagation at all.
// k operands need csa_levels(k) layers of them before one carry-propagate adder; the Dadda
// heights 2, 3, 4, 6, 9, 13, 19, 28, 42, 63 (d(j+1) = floor(3 d(j) / 2); L. Dadda, "Some
// schemes for parallel multipliers", Alta Frequenza 34, 1965) are the most operands j layers
// can reduce to two. wallace_next() is one layer of the Wallace reduction (C. S. Wallace, IEEE
// Trans. Electronic Computers EC-13, 1964); the tests hold the two counts equal.
//
// WHAT IT DOES NOT CLAIM: no device timing. Fanout and wire length cost real delay that the
// level count does not show; max_fanout() names the first of them.
// Claim status: checked by the tests below -- the sum of 100 + 27, the 7-bit run of 127 + 1,
// the four prefix networks verified to compute every carry for n = 2..32 and their cell
// counts equal to the closed forms, the Dadda sequence, and Wallace = Dadda levels for k <= 300.
// phi^2 + 1/phi^2 = 3 | TRINITY
module fpga::dsp::adders {
pub const KIND : str = "widget-logic";
pub const ID : str = "adders";
pub const VERSION : u8 = 1;
pub const CARRY4_BITS : u8 = 4;
pub const MAX_BITS : u8 = 32;
pub const NET_RIPPLE : u8 = 0;
pub const NET_SKLANSKY : u8 = 1;
pub const NET_KOGGE_STONE : u8 = 2;
pub const NET_BRENT_KUNG : u8 = 3;
pub const DADDA_FIRST : u16 = 2;
// ---- The carry chain -------------------------------------------------------------------
// The carry out of bit i of a + b (carry in 0): the majority, bit by bit from the bottom.
fn carry_out(a: u32, b: u32, i: u8) -> u8 {
var c : u32 = 0;
var j : u8 = 0;
while (j <= i && j < MAX_BITS) {
const x = (a >> j) & 1;
const y = (b >> j) & 1;
c = (x & y) | (x & c) | (y & c);
j = j + 1;
}
return c as u8;
}
// Bit i of a + b.
fn sum_bit(a: u32, b: u32, i: u8) -> u8 {
var cin : u32 = 0;
if (i > 0) {
cin = carry_out(a, b, i - 1) as u32;
}
return (((a >> i) ^ (b >> i) ^ cin) & 1) as u8;
}
// a + b over n bits, the carry out of the top bit included, as one number.
fn sum_value(a: u32, b: u32, n: u8) -> f64 {
var v : f64 = 0.0;
var w : f64 = 1.0;
var i : u8 = 0;
while (i < n) {
v = v + w * (sum_bit(a, b, i) as f64);
w = w * 2.0;
i = i + 1;
}
if (n > 0) {
v = v + w * (carry_out(a, b, n - 1) as f64);
}
return v;
}
// 1 when bit i generates a carry, 2 when it propagates one, 0 when it kills it.
fn bit_role(a: u32, b: u32, i: u8) -> u8 {
const x = (a >> i) & 1;
const y = (b >> i) & 1;
if (x == 1 && y == 1) {
return 1;
}
if ((x ^ y) == 1) {
return 2;
}
return 0;
}
// The longest run of consecutive bits whose carry out is 1, over bits 0..n-1: how far the
// slowest carry of this particular sum travels.
fn carry_run(a: u32, b: u32, n: u8) -> u8 {
var best : u8 = 0;
var cur : u8 = 0;
var i : u8 = 0;
while (i < n) {
if (carry_out(a, b, i) == 1) {
cur = cur + 1;
if (cur > best) {
best = cur;
}
} else {
cur = 0;
}
i = i + 1;
}
return best;
}
// A carry recomputed by a LUT in every bit: a LUT and a route per bit.
fn ripple_ps(n: u8, lut_ps: u16, route_ps: u16) -> u32 {
return (n as u32) * ((lut_ps as u32) + (route_ps as u32));
}
// The dedicated chain: one LUT and one route into it, then one hop per bit.
fn chain_ps(n: u8, lut_ps: u16, route_ps: u16, hop_ps: u16) -> u32 {
return (lut_ps as u32) + (route_ps as u32) + (n as u32) * (hop_ps as u32);
}
// CARRY4 blocks (one per slice) an n-bit chain occupies.
fn carry4_blocks(n: u8) -> u8 {
return (n + CARRY4_BITS - 1) / CARRY4_BITS;
}
// ---- Prefix networks -------------------------------------------------------------------
// log2 of a power of two n (2..32).
fn depth_of(n: u8) -> u8 {
var d : u8 = 0;
var m : u8 = n;
while (m > 1) {
m = m / 2;
d = d + 1;
}
return d;
}
// Logic levels of a network over n columns.
fn levels(net: u8, n: u8) -> u8 {
const d = depth_of(n);
if (net == NET_RIPPLE) {
return n - 1;
}
if (net == NET_BRENT_KUNG) {
return 2 * d - 1;
}
return d;
}
// The column that column i combines with at one level, or -1.
fn src(net: u8, n: u8, i: u8, level: u8) -> i16 {
const d = depth_of(n);
const ii = i as i16;
if (net == NET_RIPPLE) {
if (i >= 1 && level == i - 1) {
return ii - 1;
}
return -1;
}
if (net == NET_SKLANSKY) {
if (level < d && ((i >> level) & 1) == 1) {
return (((i >> level) << level) as i16) - 1;
}
return -1;
}
if (net == NET_KOGGE_STONE) {
if (level < d && (ii >= ((1 as i16) << level))) {
return ii - ((1 as i16) << level);
}
return -1;
}
if (level < d) {
const span = (1 as i16) << level;
if (@rem(ii + 1, span * 2) == 0) {
return ii - span;
}
return -1;
}
if (level - d + 2 > d) {
return -1;
}
const k = d - 2 - (level - d);
const half = (1 as i16) << k;
if (@rem(ii + 1, half * 2) == half && ii >= 3 * half - 1) {
return ii - half;
}
return -1;
}
// Prefix cells (black dots) the network uses: every (column, level) with a source.
fn cells(net: u8, n: u8) -> u16 {
var count : u16 = 0;
var level : u8 = 0;
const top = levels(net, n);
while (level < top) {
var i : u8 = 0;
while (i < n) {
if (src(net, n, i, level) >= 0) {
count = count + 1;
}
i = i + 1;
}
level = level + 1;
}
return count;
}
// The most cells one column feeds at a single level.
fn max_fanout(net: u8, n: u8) -> u8 {
var best : u8 = 0;
var level : u8 = 0;
const top = levels(net, n);
while (level < top) {
var j : u8 = 0;
while (j < n) {
var fan : u8 = 0;
var i : u8 = 0;
while (i < n) {
if (src(net, n, i, level) == (j as i16)) {
fan = fan + 1;
}
i = i + 1;
}
if (fan > best) {
best = fan;
}
j = j + 1;
}
level = level + 1;
}
return best;
}
// Replays the network on spans: column i starts as [i..i]; joining i with s is legal only
// when s ends right below i's span, and leaves i spanning down to s's low end. True when
// every join was legal and every column ends spanning [0..i].
fn covers(net: u8, n: u8) -> bool {
var lo : [32]i16 = [0; 32];
var nxt : [32]i16 = [0; 32];
var i : u8 = 0;
while (i < n) {
lo[i] = i as i16;
i = i + 1;
}
var level : u8 = 0;
const top = levels(net, n);
while (level < top) {
var j : u8 = 0;
while (j < n) {
nxt[j] = lo[j];
const s = src(net, n, j, level);
if (s >= 0) {
if (lo[j] != s + 1) {
return false;
}
nxt[j] = lo[s as u8];
}
j = j + 1;
}
var c : u8 = 0;
while (c < n) {
lo[c] = nxt[c];
c = c + 1;
}
level = level + 1;
}
var k : u8 = 0;
while (k < n) {
if (lo[k] != 0) {
return false;
}
k = k + 1;
}
return true;
}
// ---- Carry-save trees ------------------------------------------------------------------
// The Dadda height d(j), j >= 1: d(1) = 2, d(j+1) = floor(3 d(j) / 2).
fn dadda(j: u8) -> u16 {
var d : u16 = DADDA_FIRST;
var k : u8 = 1;
while (k < j) {
d = d * 3 / 2;
k = k + 1;
}
return d;
}
// Layers of 3:2 counters that reduce k operands to two: the j with d(j) < k <= d(j+1).
fn csa_levels(k: u16) -> u8 {
if (k <= DADDA_FIRST) {
return 0;
}
var j : u8 = 1;
while (dadda(j + 1) < k) {
j = j + 1;
}
return j;
}
// One Wallace layer: every group of three rows becomes two, the rest pass through.
fn wallace_next(k: u16) -> u16 {
return 2 * (k / 3) + k % 3;
}
// Wallace layers until two rows are left.
fn wallace_levels(k: u16) -> u8 {
var rows : u16 = k;
var n : u8 = 0;
while (rows > 2) {
rows = wallace_next(rows);
n = n + 1;
}
return n;
}
// The sum word of a 3:2 counter: one full adder per bit, no carry between bits.
fn csa_sum(a: u16, b: u16, c: u16) -> u32 {
return ((a as u32) ^ (b as u32)) ^ (c as u32);
}
// The carry word of a 3:2 counter, already shifted to the next bit.
fn csa_carry(a: u16, b: u16, c: u16) -> u32 {
const x = a as u32;
const y = b as u32;
const z = c as u32;
return ((x & y) | (x & z) | (y & z)) << 1;
}
// What the two words of a 3:2 counter add up to: a + b + c.
fn csa_total(a: u16, b: u16, c: u16) -> u32 {
return csa_sum(a, b, c) + csa_carry(a, b, c);
}
// Full-adder delays to add k n-bit numbers: k - 1 carry-propagate adders in a row
// (each n deep, no overlap) against a carry-save tree and one final adder.
fn chain_fa_delays(k: u16, n: u8) -> u32 {
return ((k as u32) - 1) * (n as u32);
}
fn tree_fa_delays(k: u16, n: u8) -> u32 {
return (csa_levels(k) as u32) + (n as u32);
}
// Full adders the carry-save layers use: each removes one operand of n bits.
fn csa_adders(k: u16, n: u8) -> u32 {
if (k <= 2) {
return 0;
}
return ((k as u32) - 2) * (n as u32);
}
// Every k from 3 to top: the Wallace count equals the Dadda count.
fn wallace_is_dadda(top: u16) -> bool {
var k : u16 = 2;
while (k <= top) {
if (wallace_levels(k) != csa_levels(k)) {
return false;
}
k = k + 1;
}
return true;
}
// ---- Tests -----------------------------------------------------------------------------
test "the sum bits are the sum" {
assert(sum_bit(100, 27, 0) == 1);
assert(sum_bit(100, 27, 6) == 1);
assert(sum_bit(100, 27, 7) == 0);
assert(sum_bit(255, 1, 0) == 0);
assert(sum_bit(255, 1, 8) == 1);
assert(carry_out(127, 1, 6) == 1);
assert(carry_out(127, 1, 7) == 0);
assert(sum_value(100, 27, 8) == 127.0);
assert(sum_value(4294967295, 1, 32) == 4294967296.0);
}
test "a carry runs as far as the bits propagate it" {
assert(carry_run(127, 1, 8) == 7);
assert(carry_run(255, 1, 8) == 8);
assert(carry_run(85, 170, 8) == 0);
assert(carry_run(3855, 241, 12) == 12);
assert(bit_role(5, 3, 0) == 1);
assert(bit_role(5, 3, 1) == 2);
assert(bit_role(5, 3, 3) == 0);
}
test "the chain beats the LUT ripple and fills CARRY4 blocks" {
assert(ripple_ps(32, 120, 300) == 13440);
assert(chain_ps(32, 120, 300, 30) == 1380);
assert(carry4_blocks(32) == 8);
assert(carry4_blocks(33) == 9);
assert(carry4_blocks(1) == 1);
}
test "every prefix network computes every carry" {
var n : u8 = 2;
while (n <= 32) {
assert(covers(NET_RIPPLE, n));
assert(covers(NET_SKLANSKY, n));
assert(covers(NET_KOGGE_STONE, n));
assert(covers(NET_BRENT_KUNG, n));
n = n * 2;
}
}
test "cell counts are the closed forms" {
assert(cells(NET_RIPPLE, 16) == 15);
assert(cells(NET_SKLANSKY, 16) == 32);
assert(cells(NET_KOGGE_STONE, 16) == 49);
assert(cells(NET_BRENT_KUNG, 16) == 26);
assert(cells(NET_KOGGE_STONE, 32) == 129);
assert(cells(NET_BRENT_KUNG, 32) == 57);
assert(cells(NET_SKLANSKY, 8) == 12);
assert(cells(NET_BRENT_KUNG, 8) == 11);
}
test "levels trade against cells and fanout" {
assert(levels(NET_RIPPLE, 32) == 31);
assert(levels(NET_SKLANSKY, 32) == 5);
assert(levels(NET_KOGGE_STONE, 32) == 5);
assert(levels(NET_BRENT_KUNG, 32) == 9);
assert(max_fanout(NET_SKLANSKY, 32) == 16);
assert(max_fanout(NET_KOGGE_STONE, 32) == 1);
assert(max_fanout(NET_BRENT_KUNG, 32) == 1);
assert(src(NET_KOGGE_STONE, 8, 5, 2) == 1);
assert(src(NET_SKLANSKY, 8, 6, 1) == 5);
assert(src(NET_BRENT_KUNG, 8, 5, 3) == 3);
}
test "the Dadda heights and the carry-save levels" {
assert(dadda(1) == 2);
assert(dadda(5) == 9);
assert(dadda(10) == 63);
assert(csa_levels(2) == 0);
assert(csa_levels(3) == 1);
assert(csa_levels(4) == 2);
assert(csa_levels(9) == 4);
assert(csa_levels(10) == 5);
assert(csa_levels(64) == 10);
assert(wallace_next(28) == 19);
assert(wallace_is_dadda(300));
}
test "a 3:2 counter keeps the sum" {
assert(csa_sum(11, 6, 13) == 0);
assert(csa_carry(11, 6, 13) == 30);
assert(csa_total(200, 100, 50) == 350);
assert(csa_sum(11, 6, 13) + csa_carry(11, 6, 13) == 30);
assert(csa_sum(65535, 65535, 65535) + csa_carry(65535, 65535, 65535) == 196605);
assert(tree_fa_delays(16, 16) == 22);
assert(chain_fa_delays(16, 16) == 240);
assert(csa_adders(16, 16) == 224);
}
test "VERSION says what the header says" {
assert(VERSION == 1);
assert(carry4_blocks(MAX_BITS) == 8);
assert(depth_of(MAX_BITS) == 5);
}
}
// phi^2 + 1/phi^2 = 3 | TRINITY
Все уроки
Модуль 1 · Сложение
Почему сложение медленное: перенос, который идёт вверх по слову, выделенная цепь в каждом слайсе, префиксные сети и деревья сохранения переноса.
Модуль 2 · Умножение
Произведение — сумма сдвинутых копий; перекодирование Бута вдвое сокращает их, а слайс DSP48E1 делает остальное одним блоком.
Модуль 3 · Фиксированная точка
Где стоит двоичная точка, что округление делает со значением и с его средним и что даёт каждый бит квантователя.
Модуль 4 · Функции в железе
Синус, косинус, угол и длина из сдвигов и сложений — и когда таблица оказывается выгоднее.
Модуль 5 · Сигналы и дискретизация
Что дискретизация делает с частотой, как генератор строится из сумматора и что измеряет бин ДПФ.
Модуль 6 · Фильтры FIR
Скользящее среднее, расчёт окном sinc с целыми коэффициентами и раскладка отводов по слайсам DSP.
Модуль 7 · Многоскоростная обработка
Понижение частоты дискретизации без заворота шума: децимация, фильтр CIC и полифазная форма.
Модуль 8 · БПФ
N log N вместо N^2: бабочки, бит-реверсный порядок входа и биты, которые добавляет каждый этап.
Модуль 9 · На стенде
От арифметики к плате: коррелятор из спеки модема, бюджет слайсов и тайминга и итоговый фильтр.
