Кадры и контрольная сумма

Вы узнаете

Как кадр Ethernet заканчивается CRC-32 и что вычисляет проверка.

Кадр Ethernet заканчивается контрольной суммой кадра: CRC-32 по байтам, вычисленная отправителем и пересчитанная получателем. Спека этого урока, написанная для этого курса, несёт полином и арифметику, а её заголовок помечает, на что проверка претендует и на что нет. Запись прогоняет t27c по ней.

Попробовать

В записи проследите прогон; затем в спеке найдите полином, который использует CRC-32, и что заголовок помечает как допущение.

Открыть интерактивный урок →

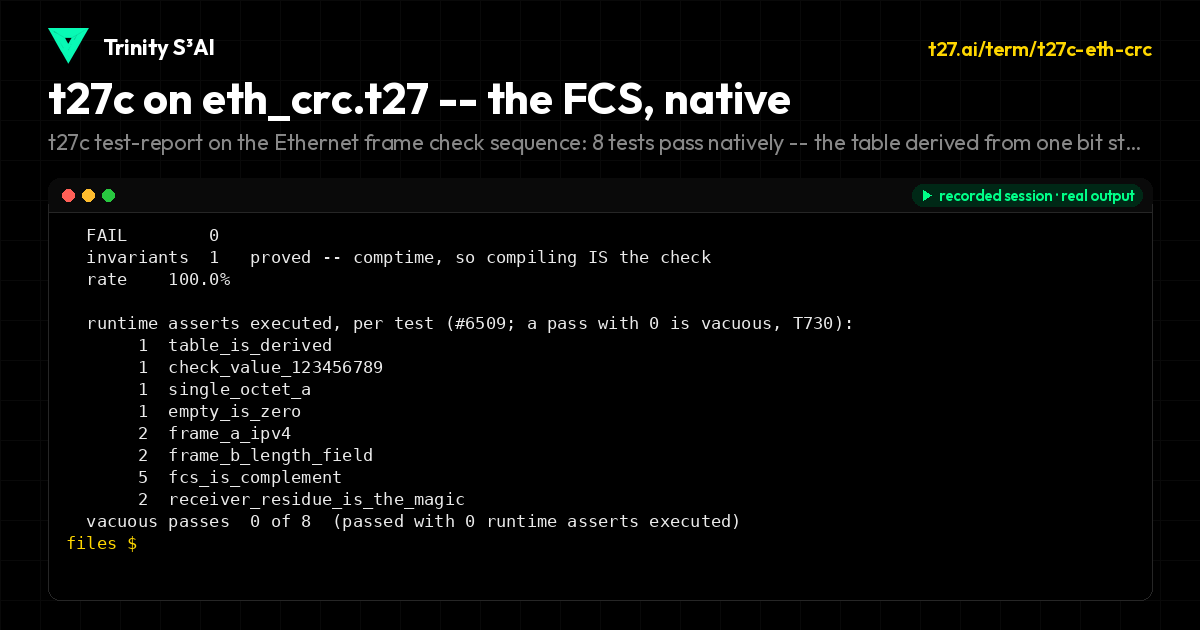

t27c on eth_crc.t27 -- the FCS, native
t27c on eth_crc.t27 -- the FCS, native ↗

t27c test-report on the Ethernet frame check sequence: 8 tests pass natively -- the table derived from one bit step, the check value 0xCBF43926, and the receiver residue 0xDEBB20E3.

specs/fpga/eth_crc.t27

// SPDX-License-Identifier: Apache-2.0
; eth_crc.t27 -- the Ethernet frame check sequence (FCS), as one spec.
; IEEE 802.3 clause 3.2.9: every MAC frame carries a 32-bit CRC over
; dst, src, length/type and payload, computed LSB-first with the
; reflected polynomial 0xEDB88320 (the reflection of 0x04C11DB7),
; register pre-set and post-inverted with 0xFFFFFFFF: the FCS field IS
; the post-inverted register, transmitted LSB first. A receiver that
; runs the same register over the frame INCLUDING its FCS is left at
; the residue 0xDEBB20E3 (zlib view 0x2144DF1C), not at the preset --
; that constant is the receiver's check, and a corrupted frame passes
; it with probability 1 - 2^-32 per the standard's error model.
; ----
; SOURCE (IEEE 802.3-2018):
;   3.2.9   FCS field definition, CRC-32 polynomial, transmission order
;   3.6     minimum frame 64 octets, FCS included
; ORACLE: every hex constant below was computed with a real tool, not
; transcribed by hand: Python 3 zlib.crc32 (the same reflected
; polynomial), run 2026-10-08:
;   crc32(b"123456789")          = 0xcbf43926  (the published check value)
;   crc32(b"a")                  = 0xe8b7be43
;   crc32(b"")                   = 0x00000000
;   frame A crc32 = 0x68a6e702 -- the FCS field is that same value,
;                                 sent LSB first: 02 e7 a6 68
;   frame B crc32 = 0x755a0222
;   crc32(frame A + fcs_le) = 0x2144df1c, and the running register
;   over the same bytes is 0xdebb20e3: the receiver's residue. NOT
;   0xffffffff -- a register that returns to its preset belongs to a
;   CRC convention without the final inversion, not to this one.
; The table below is NOT trusted either: test table_is_derived recomputes
; all 256 entries from crc_bit, the same self-check packets.t27 runs on
; the Xilinx CRC table.
; ----
; Course use: trinity buses-and-peripherals module 8 lesson frames-and-crc
; (gHashTag/trinity#1484). Numbers here are algorithm truth and tool
; output only -- no board measurement is claimed.

module fpga_eth_crc;

pub const ETH_CRC_POLY : u32 = 0xEDB88320;
pub const CRC_INIT     : u32 = 0xFFFFFFFF;
; crc_buf carries up to 32 octets, frames here need 18
pub const BUF_WORDS    : u32 = 32;

; One reflected step: if the low bits of register and data differ, shift and
; fold the polynomial in; else just shift.
pub fn crc_bit(bit : u32, crc : u32) u32 {
    const differ = ((bit ^ crc) & 1) == 1;
    if (differ) {
        return (crc >> 1) ^ ETH_CRC_POLY;
    }
    return crc >> 1;
}

; Feed the low n bits of x, LSB first -- Ethernet order.
pub fn crc_bits(x : u32, n : u32, prev : u32) u32 {
    var crc : u32 = prev;
    var i : u32 = 0;
    while i < n {
        crc = crc_bit(x >> i, crc);
        i = i + 1;
    }
    return crc;
}

; Table form: feeding 8 bits b into c equals (c >> 8) ^ T[(c ^ b) & 0xFF].
; All 256 entries recomputed from crc_bit by test table_is_derived.
pub const ETH_CRC_TABLE : [256]u32 = [
    0x00000000, 0x77073096, 0xEE0E612C, 0x990951BA, 0x076DC419, 0x706AF48F, 0xE963A535, 0x9E6495A3,
    0x0EDB8832, 0x79DCB8A4, 0xE0D5E91E, 0x97D2D988, 0x09B64C2B, 0x7EB17CBD, 0xE7B82D07, 0x90BF1D91,
    0x1DB71064, 0x6AB020F2, 0xF3B97148, 0x84BE41DE, 0x1ADAD47D, 0x6DDDE4EB, 0xF4D4B551, 0x83D385C7,
    0x136C9856, 0x646BA8C0, 0xFD62F97A, 0x8A65C9EC, 0x14015C4F, 0x63066CD9, 0xFA0F3D63, 0x8D080DF5,
    0x3B6E20C8, 0x4C69105E, 0xD56041E4, 0xA2677172, 0x3C03E4D1, 0x4B04D447, 0xD20D85FD, 0xA50AB56B,
    0x35B5A8FA, 0x42B2986C, 0xDBBBC9D6, 0xACBCF940, 0x32D86CE3, 0x45DF5C75, 0xDCD60DCF, 0xABD13D59,
    0x26D930AC, 0x51DE003A, 0xC8D75180, 0xBFD06116, 0x21B4F4B5, 0x56B3C423, 0xCFBA9599, 0xB8BDA50F,
    0x2802B89E, 0x5F058808, 0xC60CD9B2, 0xB10BE924, 0x2F6F7C87, 0x58684C11, 0xC1611DAB, 0xB6662D3D,
    0x76DC4190, 0x01DB7106, 0x98D220BC, 0xEFD5102A, 0x71B18589, 0x06B6B51F, 0x9FBFE4A5, 0xE8B8D433,
    0x7807C9A2, 0x0F00F934, 0x9609A88E, 0xE10E9818, 0x7F6A0DBB, 0x086D3D2D, 0x91646C97, 0xE6635C01,
    0x6B6B51F4, 0x1C6C6162, 0x856530D8, 0xF262004E, 0x6C0695ED, 0x1B01A57B, 0x8208F4C1, 0xF50FC457,
    0x65B0D9C6, 0x12B7E950, 0x8BBEB8EA, 0xFCB9887C, 0x62DD1DDF, 0x15DA2D49, 0x8CD37CF3, 0xFBD44C65,
    0x4DB26158, 0x3AB551CE, 0xA3BC0074, 0xD4BB30E2, 0x4ADFA541, 0x3DD895D7, 0xA4D1C46D, 0xD3D6F4FB,
    0x4369E96A, 0x346ED9FC, 0xAD678846, 0xDA60B8D0, 0x44042D73, 0x33031DE5, 0xAA0A4C5F, 0xDD0D7CC9,
    0x5005713C, 0x270241AA, 0xBE0B1010, 0xC90C2086, 0x5768B525, 0x206F85B3, 0xB966D409, 0xCE61E49F,
    0x5EDEF90E, 0x29D9C998, 0xB0D09822, 0xC7D7A8B4, 0x59B33D17, 0x2EB40D81, 0xB7BD5C3B, 0xC0BA6CAD,
    0xEDB88320, 0x9ABFB3B6, 0x03B6E20C, 0x74B1D29A, 0xEAD54739, 0x9DD277AF, 0x04DB2615, 0x73DC1683,
    0xE3630B12, 0x94643B84, 0x0D6D6A3E, 0x7A6A5AA8, 0xE40ECF0B, 0x9309FF9D, 0x0A00AE27, 0x7D079EB1,
    0xF00F9344, 0x8708A3D2, 0x1E01F268, 0x6906C2FE, 0xF762575D, 0x806567CB, 0x196C3671, 0x6E6B06E7,
    0xFED41B76, 0x89D32BE0, 0x10DA7A5A, 0x67DD4ACC, 0xF9B9DF6F, 0x8EBEEFF9, 0x17B7BE43, 0x60B08ED5,
    0xD6D6A3E8, 0xA1D1937E, 0x38D8C2C4, 0x4FDFF252, 0xD1BB67F1, 0xA6BC5767, 0x3FB506DD, 0x48B2364B,
    0xD80D2BDA, 0xAF0A1B4C, 0x36034AF6, 0x41047A60, 0xDF60EFC3, 0xA867DF55, 0x316E8EEF, 0x4669BE79,
    0xCB61B38C, 0xBC66831A, 0x256FD2A0, 0x5268E236, 0xCC0C7795, 0xBB0B4703, 0x220216B9, 0x5505262F,
    0xC5BA3BBE, 0xB2BD0B28, 0x2BB45A92, 0x5CB36A04, 0xC2D7FFA7, 0xB5D0CF31, 0x2CD99E8B, 0x5BDEAE1D,
    0x9B64C2B0, 0xEC63F226, 0x756AA39C, 0x026D930A, 0x9C0906A9, 0xEB0E363F, 0x72076785, 0x05005713,
    0x95BF4A82, 0xE2B87A14, 0x7BB12BAE, 0x0CB61B38, 0x92D28E9B, 0xE5D5BE0D, 0x7CDCEFB7, 0x0BDBDF21,
    0x86D3D2D4, 0xF1D4E242, 0x68DDB3F8, 0x1FDA836E, 0x81BE16CD, 0xF6B9265B, 0x6FB077E1, 0x18B74777,
    0x88085AE6, 0xFF0F6A70, 0x66063BCA, 0x11010B5C, 0x8F659EFF, 0xF862AE69, 0x616BFFD3, 0x166CCF45,
    0xA00AE278, 0xD70DD2EE, 0x4E048354, 0x3903B3C2, 0xA7672661, 0xD06016F7, 0x4969474D, 0x3E6E77DB,
    0xAED16A4A, 0xD9D65ADC, 0x40DF0B66, 0x37D83BF0, 0xA9BCAE53, 0xDEBB9EC5, 0x47B2CF7F, 0x30B5FFE9,
    0xBDBDF21C, 0xCABAC28A, 0x53B39330, 0x24B4A3A6, 0xBAD03605, 0xCDD70693, 0x54DE5729, 0x23D967BF,
    0xB3667A2E, 0xC4614AB8, 0x5D681B02, 0x2A6F2B94, 0xB40BBE37, 0xC30C8EA1, 0x5A05DF1B, 0x2D02EF8D,
];

pub fn crc_octet(b : u32, crc : u32) u32 {
    return (crc >> 8) ^ ETH_CRC_TABLE[(crc ^ b) & 0xFF];
}

; CRC over the first len octets of a 32-octet buffer, preset 0xFFFFFFFF.
; The caller pads the tail with zeros; only len octets are folded in.
pub fn crc_buf(data : [32]u8, len : u32) u32 {
    var crc : u32 = CRC_INIT;
    var i : u32 = 0;
    while i < len {
        crc = crc_octet(data[i], crc);
        i = i + 1;
    }
    return crc;
}

; The FCS the sender appends: the post-inverted running register
; (802.3 3.2.9), transmitted LSB first. A receiver that runs the same
; register over the frame INCLUDING the FCS is left at the residue
; 0xDEBB20E3 -- that constant, not a return to the preset, is the
; receiver's check; zlib sees the same residue as 0x2144DF1C.
pub fn fcs_of(crc : u32) u32 {
    return crc ^ CRC_INIT;
}

test table_is_derived {
    var bad : u32 = 0;
    var i : u32 = 0;
    while i < 256 {
        if (ETH_CRC_TABLE[i] != crc_bits(i, 8, 0)) {
            bad = bad + 1;
        }
        i = i + 1;
    }
    assert bad == 0;
}

; zlib.crc32(b"123456789") -- the published CRC-32 check value. c8 below is
; the running register (0x340bc6d9); the published value is its post-inversion,
; the FCS view, so the assert goes through fcs_of.
test check_value_123456789 {
    const c0 = crc_octet(0x31, CRC_INIT);
    const c1 = crc_octet(0x32, c0);
    const c2 = crc_octet(0x33, c1);
    const c3 = crc_octet(0x34, c2);
    const c4 = crc_octet(0x35, c3);
    const c5 = crc_octet(0x36, c4);
    const c6 = crc_octet(0x37, c5);
    const c7 = crc_octet(0x38, c6);
    const c8 = crc_octet(0x39, c7);
    assert fcs_of(c8) == 0xcbf43926;
}

; zlib.crc32(b"a")
test single_octet_a {
    assert fcs_of(crc_buf([0x61, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0], 1)) == 0xe8b7be43;
}

; No octets: preset, then the final inversion -- the CRC of nothing is 0.
; crc_buf of an empty run hands back the preset itself, and fcs_of of that
; is zero, so the assert goes through fcs_of.
test empty_is_zero {
    assert fcs_of(crc_buf([0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0], 0)) == 0x00000000;
}

; Frame A: broadcast dst, one src, IPv4 ethertype, first bytes of an IP header.
; zlib.crc32 = 0x68a6e702 (the FCS field, sent LSB first as 02 e7 a6 68);
; the running register = 0x975918fd. The asserts pin both views.
test frame_a_ipv4 {
    const crc = crc_buf([
        0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
        0x0A, 0x0B, 0x0C, 0x0D, 0x0E, 0x0F,
        0x08, 0x00,
        0x45, 0x00, 0x00, 0x1C,
        0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    ], 18);
    assert crc == 0x975918fd;
    assert fcs_of(crc) == 0x68a6e702;
}

; Frame B: the slow-protocols multicast dst an STP/LLDP frame uses, with a
; length field instead of a type. zlib.crc32 = 0x755a0222 (the FCS field
; value), running register = 0x8aa5fddd.
test frame_b_length_field {
    const crc = crc_buf([
        0x01, 0x80, 0xC2, 0x00, 0x00, 0x00, 0x0A, 0x0B, 0x0C, 0x0D, 0x0E, 0x0F, 0x00, 0x26,
        0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    ], 14);
    assert crc == 0x8aa5fddd;
    assert fcs_of(crc) == 0x755a0222;
}

; The FCS is always the complement: every vector above obeys it in one sweep.
; Every vector above, both views, one sweep: the register and the FCS field
; are complements of each other.
test fcs_is_complement {
    assert fcs_of(0x975918fd) == 0x68a6e702;
    assert fcs_of(0x68a6e702) == 0x975918fd;
    assert fcs_of(0x8aa5fddd) == 0x755a0222;
    assert fcs_of(0x340bc6d9) == 0xcbf43926;
    assert fcs_of(0x00000000) == 0xFFFFFFFF;
}

; The receiver's check: the register over frame A WITH its FCS appended
; (the FCS travels LSB first: 02 e7 a6 68) settles at the residue
; 0xDEBB20E3 -- never at the preset 0xFFFFFFFF, which this CRC's final
; inversion rules out. zlib.crc32(frame_a + fcs_le) = 0x2144df1c, the
; same residue in the post-inverted view; both computed, not recalled.
test receiver_residue_is_the_magic {
    const c0 = crc_buf([
        0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x0A, 0x0B,
        0x0C, 0x0D, 0x0E, 0x0F, 0x08, 0x00, 0x45, 0x00,
        0x00, 0x1C, 0, 0, 0, 0, 0, 0,
        0, 0, 0, 0, 0, 0, 0, 0,
    ], 18);
    const r = crc_buf([
        0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x0A, 0x0B,
        0x0C, 0x0D, 0x0E, 0x0F, 0x08, 0x00, 0x45, 0x00,
        0x00, 0x1C, 0x02, 0xE7, 0xA6, 0x68, 0, 0,
        0, 0, 0, 0, 0, 0, 0, 0,
    ], 22);
    assert c0 == 0x975918fd;
    assert r == 0xDEBB20E3;
}

invariant fcs_complement_matches_crc {
    fcs_of(0x68a6e702) == 0x68a6e702 ^ CRC_INIT
}
