Embeddings
You will learn
How a token becomes a row of numbers, and why learning changes only the rows that were read.
A network cannot multiply a word, so each token is an index into a table with one row of numbers per token, and looking a token up copies its row. In the spec the table has 4 tokens of width 2 and row v holds (10 v, 10 v + 1), so token 2 reads (20, 21). Learning sends the gradient back only to the rows that were read, and a token read twice collects both: gradient rows (1, 2) and (3, 4) on token 2 add up to (4, 6). The spec embedding_layer.t27 computes the lookup and the gradient.
Try it
Read token 2 twice and then tokens 1 and 3; count the rows whose gradient is not 0 each time.

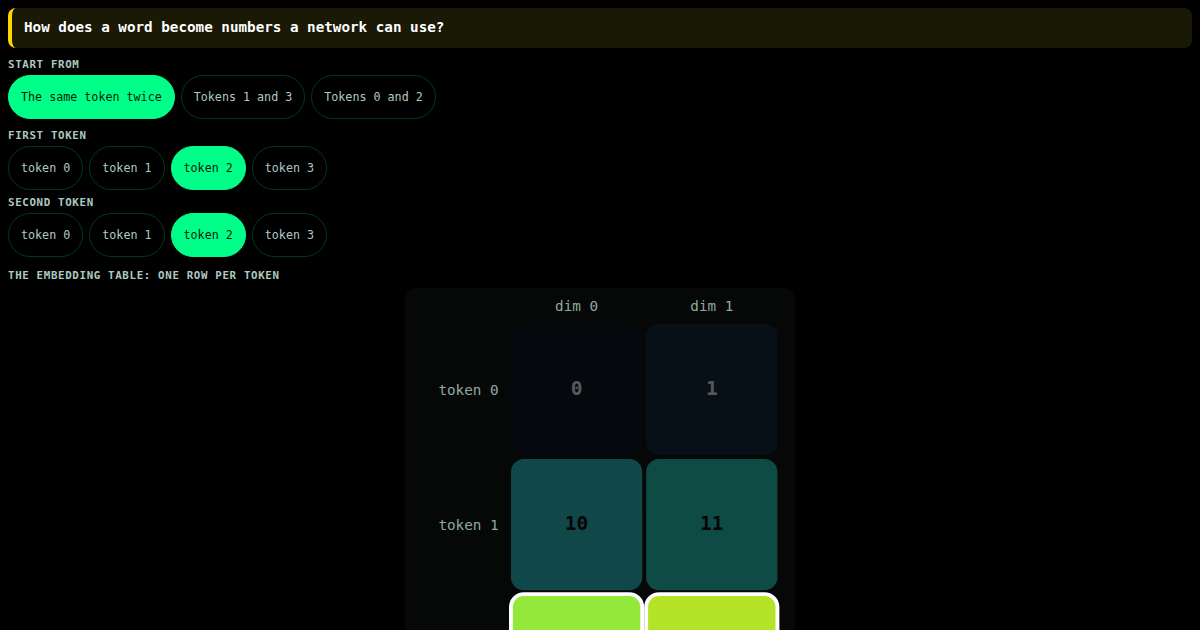

Pick two tokens: each one copies its row out of the table. Then the gradient flows back only into the rows that were read, and a token read twice collects both.
specs/ml/layers/embedding_layer.t27
// SPDX-License-Identifier: Apache-2.0
// t27/specs/
// Embeddings are learned parameters | φ² + 1/φ² = 3 | TRINITY
// #8980: forward only asserted its arguments and wrote nothing, the tests called
// undeclared `test_input_forward` / `test_input_init` and asserted
// `result != undefined`, and the invariants asserted `true`. forward now looks each
// token's row up in W (vocab_size x d_model, row-major), backward adds each
// gradient row back into the row it came from, and init fills W deterministically.
module Embedding;
use base::types;
use math::constants;
// ═══════════════════════════════════════════════════════════
// 1. Constants
// ═══════════════════════════════════════════════════════════
const DEFAULT_D_MODEL : u32 = 64;
// ═══════════════════════════════════════════════════════════
// 2. Types
// ═══════════════════════════════════════════════════════════
pub const EmbeddingConfig = struct {
vocab_size : u32,
d_model : u32,
};
pub const EmbeddingWeights = struct {
W : []f32,
};
// ═══════════════════════════════════════════════════════════
// 3. Core Functions
// ═══════════════════════════════════════════════════════════
// embeddings[t * d + j] = W[token_ids[t] * d + j]: one row of W per token
fn forward(token_ids: []const u32, weights: EmbeddingWeights, embeddings: []f32, config: EmbeddingConfig) -> void {
const d : usize = config.d_model;
var t : usize = 0;
while (t < token_ids.len) {
const row : usize = token_ids[t];
var j : usize = 0;
while (j < d) {
embeddings[t * d + j] = weights.W[row * d + j];
j = j + 1;
}
t = t + 1;
}
}
// grad_W[token_ids[t]] += grad_embeddings[t]: a token seen twice collects both rows
fn backward(token_ids: []const u32, grad_embeddings: []const f32, grad_W: []f32, config: EmbeddingConfig) -> void {
const d : usize = config.d_model;
var t : usize = 0;
while (t < token_ids.len) {
const row : usize = token_ids[t];
var j : usize = 0;
while (j < d) {
grad_W[row * d + j] = grad_W[row * d + j] + grad_embeddings[t * d + j];
j = j + 1;
}
t = t + 1;
}
}
// Deterministic init in [-0.5, 0.5) / sqrt(d_model): a fixed hash of (row, column), so
// two runs start from the same weights
fn init(weights: EmbeddingWeights, config: EmbeddingConfig) -> void {
const d : usize = config.d_model;
const scale : f32 = 1.0 / sqrt(@as(f32, @floatFromInt(d)));
var k : usize = 0;
while (k < config.vocab_size * d) {
const h : u32 = @as(u32, @intCast((k * 2654435761) % 1000));
weights.W[k] = (@as(f32, @floatFromInt(h)) / 1000.0 - 0.5) * scale;
k = k + 1;
}
}
// vocab 4, d_model 2, W row v = (10 v, 10 v + 1)
fn cfg() -> EmbeddingConfig {
return EmbeddingConfig{ .vocab_size = 4, .d_model = 2 };
}
fn lookup_at(a: u32, b: u32, index: usize) -> f32 {
var w : [8]f32 = [0.0, 1.0, 10.0, 11.0, 20.0, 21.0, 30.0, 31.0];
const ids : [2]u32 = [a, b];
var out : [4]f32 = [-1.0] ** 4;
forward(&ids, EmbeddingWeights{ .W = &w }, &out, cfg());
return out[index];
}
// grad_W[index] after backward of ids (a, b) with gradient rows (1, 2) and (3, 4)
fn grad_at(a: u32, b: u32, index: usize) -> f32 {
const ids : [2]u32 = [a, b];
const grads : [4]f32 = [1.0, 2.0, 3.0, 4.0];
var grad_w : [8]f32 = [0.0] ** 8;
backward(&ids, &grads, &grad_w, cfg());
return grad_w[index];
}
fn init_at(index: usize) -> f32 {
var w : [8]f32 = [9.0] ** 8;
init(EmbeddingWeights{ .W = &w }, cfg());
return w[index];
}
fn valid_input() -> u32 {
return cfg().vocab_size * cfg().d_model;
}
// ═══════════════════════════════════════════════════════════
// TDD: Tests (from .tri behaviors)
// ═══════════════════════════════════════════════════════════
// ids (2, 0): rows (20, 21) then (0, 1)
test forward_basic_case
given first = lookup_at(2, 0, 0)
when last = lookup_at(2, 0, 3)
then first == 20.0 and lookup_at(2, 0, 1) == 21.0 and lookup_at(2, 0, 2) == 0.0 and last == 1.0
// Every weight is written, inside [-0.5, 0.5) / sqrt(2), and init is reproducible
test init_basic_case
given first = init_at(0)
when last = init_at(7)
then first != 9.0 and last != 9.0 and @abs(first) <= 0.36 and @abs(last) <= 0.36 and init_at(5) == init_at(5) and init_at(1) != init_at(2)
// A token seen twice collects both gradient rows; an unseen row stays 0
test backward_accumulates_repeated_tokens
given row1 = grad_at(1, 1, 2)
when unseen = grad_at(1, 1, 0)
then row1 == 4.0 and grad_at(1, 1, 3) == 6.0 and unseen == 0.0 and grad_at(1, 3, 6) == 3.0
// ═══════════════════════════════════════════════════════════
// TDD: Invariants (from .tri constraints)
// ═══════════════════════════════════════════════════════════
// vocab_size > 0
invariant embedding_constraint_0
assert cfg().vocab_size > 0
// d_model > 0
invariant embedding_constraint_1
assert cfg().d_model > 0 and DEFAULT_D_MODEL > 0
// W.size() == vocab_size * d_model
invariant embedding_constraint_2
assert valid_input() == 8
// token_ids must be in [0, vocab_size): the last id reads the last row
invariant embedding_constraint_3
assert lookup_at(3, 3, 1) == 31.0
// "Embedding dimension affects model capacity": each token gets d_model numbers
invariant embedding_constraint_4
assert lookup_at(1, 2, 1) == 11.0 and lookup_at(1, 2, 2) == 20.0
// "Larger vocab requires larger d_model": the init scale shrinks as 1 / sqrt(d_model)
invariant embedding_constraint_5
assert 1.0 / sqrt(@as(f32, 64.0)) < 1.0 / sqrt(@as(f32, 2.0))
// "Pre-trained embeddings transfer well": forward is a pure lookup, so loaded rows come out unchanged
invariant embedding_constraint_6
assert lookup_at(0, 1, 0) == 0.0 and lookup_at(0, 1, 2) == 10.0
