WASM on the AX7203: flash, self-test, 134/134 exact

The t27-generated WASM interpreter on an ALINX AX7203 (xc7a200t), bitstream from the openXC7 flow, spec at trinity-fpga 4655702ed: openFPGALoader flashes over the onboard FT232H, the model-board self-test shows every conformance check able to fail, and one run answers all 134 requests exactly over UART.

  [ok  ] pinned   xmul_not      2/2
  [ok  ] pinned   sub_and_or    2/2
  [ok  ] pinned   shl_sar       2/2
  [ok  ] pinned   eq            2/2
  [ok  ] pinned   ne            2/2
  [ok  ] pinned   le_s          2/2
  [ok  ] pinned   ge_s          2/2
  [ok  ] pinned   eqz           2/2
  [ok  ] pinned   gt_s          2/2
  [ok  ] pinned   set_get       2/2
  [ok  ] pinned   tee_dup       2/2
  [ok  ] random   add_double    8/8
  [ok  ] random   answer        8/8
  [ok  ] random   xmul_not      8/8
  [ok  ] random   sub_and_or    8/8
  [ok  ] random   shl_sar       8/8
  [ok  ] random   eq            8/8
  [ok  ] random   ne            8/8
  [ok  ] random   le_s          8/8
  [ok  ] random   ge_s          8/8
  [ok  ] random   eqz           8/8
  [ok  ] random   gt_s          8/8
  [ok  ] random   set_get       8/8
  [ok  ] random   tee_dup       8/8
  [ok  ] wrap     add_double    1/1
  [ok  ] wrap     sub_and_or    1/1
sent 134, answered 134, window 1
elapsed 0.3 s (492 answers/s)
WASM BOARD RESULT: 134/134 responses exact (fails=0, lost=0)
t27 $

recorded 2026-10-12 04:14 UTCreal 32.5 sshown 32.5 sexit codes 0 0 0 0 0

$ git log -1 --format='%h %s' | cut -c1-100 $ openFPGALoader --scan-usb $ openFPGALoader -c digilent_hs2 --busdev-num 000:005 /tmp/wasm-build/wasm_board_ax7203.bit $ python3 conformance/wasm_board_ax7203.py --self-test $ python3 conformance/wasm_board_ax7203.py --port /dev/cu.usbserial-130

Staged: the prompt and the typing. Real: every byte the commands printed, at the time they printed it. Any silence longer than 2 s is shown for 2 s, and the title bar says so while it happens. Edited: nothing. No GIF: this recording has none.

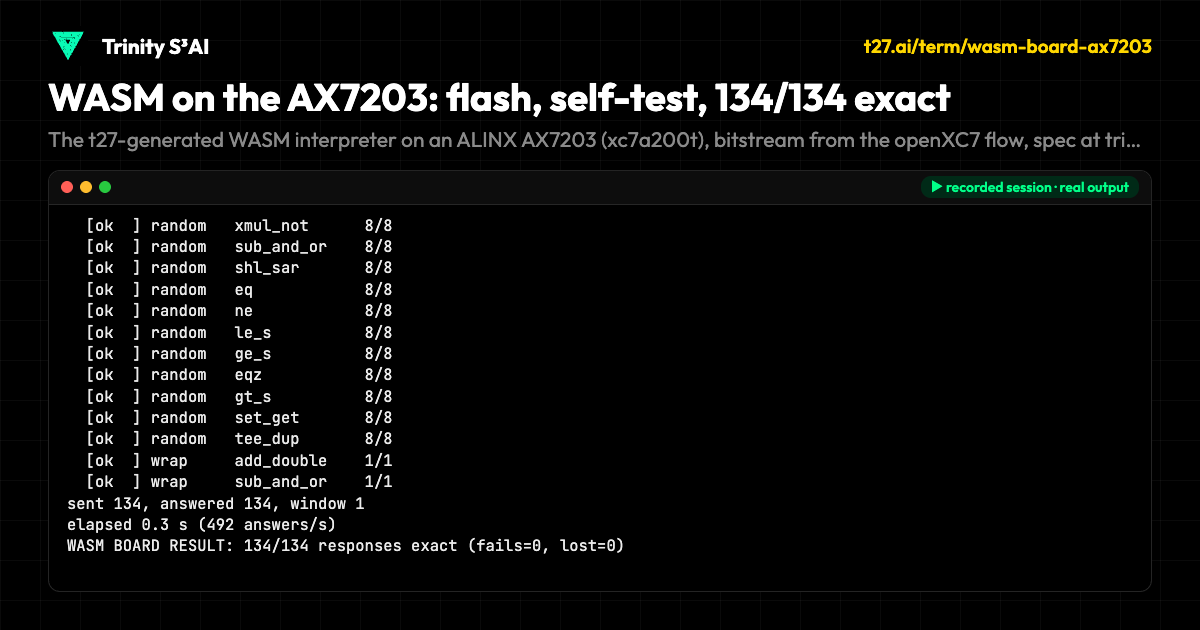

Preview card
