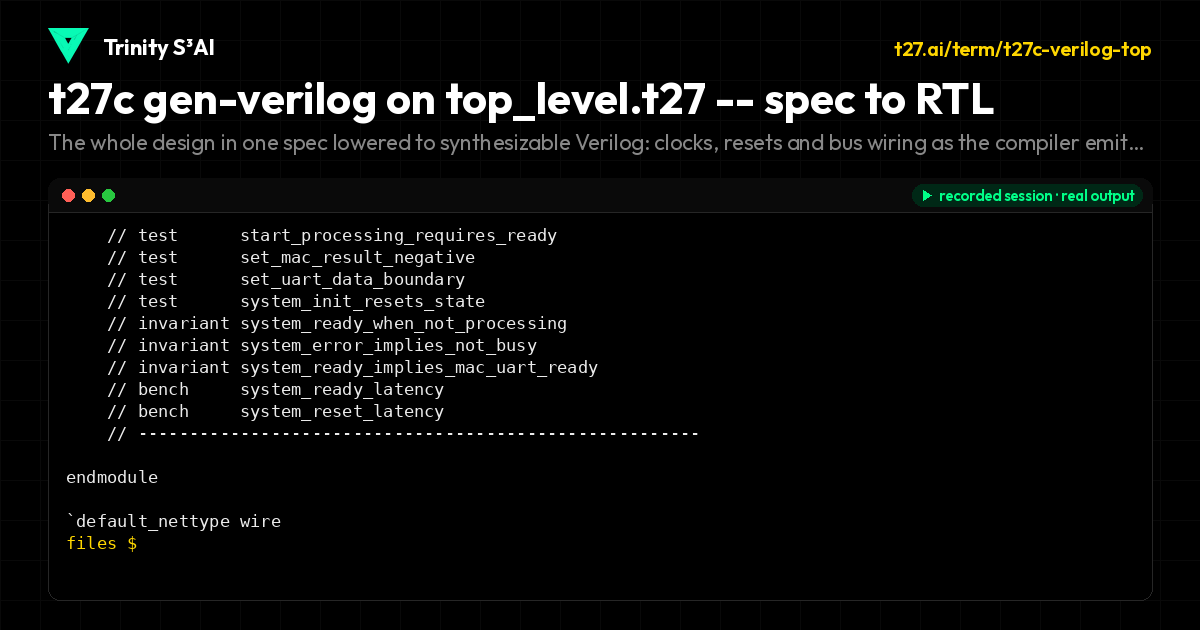

t27c gen-verilog on top_level.t27 -- spec to RTL

The whole design in one spec lowered to synthesizable Verilog: clocks, resets and bus wiring as the compiler emits them.

t27c gen-verilog specs/fpga/top_level.t27

    // test      system_initially_ready
    // test      system_initially_not_busy
    // test      system_initially_no_error
    // test      system_reset_clears_state
    // test      start_processing_sets_busy
    // test      stop_processing_clears_busy
    // test      set_error_clears_busy
    // test      get_mac_result_after_set
    // test      get_uart_data_after_set
    // test      mac_result_clears_processing
    // test      constants_clk_freq
    // test      command_constants
    // test      system_reset_clears_mac_result
    // test      system_reset_clears_uart_data
    // test      clear_error_does_not_affect_ready
    // test      start_processing_requires_ready
    // test      set_mac_result_negative
    // test      set_uart_data_boundary
    // test      system_init_resets_state
    // invariant system_ready_when_not_processing
    // invariant system_error_implies_not_busy
    // invariant system_ready_implies_mac_uart_ready
    // bench     system_ready_latency
    // bench     system_reset_latency
    // -------------------------------------------------------

endmodule

`default_nettype wire
files $

recorded 2026-10-08 00:12 UTCreal 3.5 sshown 3.5 sexit codes 0

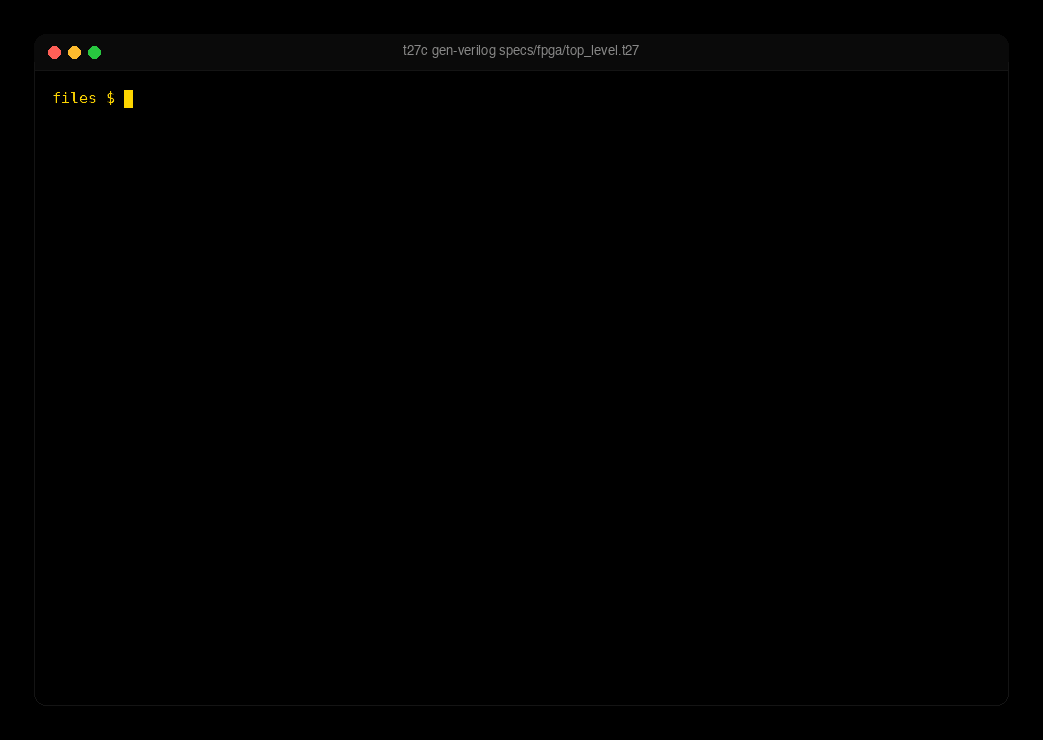

$ t27c gen-verilog specs/fpga/top_level.t27

Staged: the prompt and the typing. Real: every byte the commands printed, at the time they printed it. Any silence longer than 2 s is shown for 2 s, and the title bar says so while it happens. Edited: home directory shown as ~.
