t27c debug-hir on axi4.t27 -- five channels as IR

The AXI4 spec lowered to hardware IR: the five channels and their handshakes as the compiler structures them.

t27c debug-hir specs/fpga/axi4.t27

            value: "bits + 8",
        },
        HirAssign {
            target: "bits",
            value: "bits + 3",
        },
        HirAssign {
            target: "bits",
            value: "bits + 2",
        },
        HirAssign {
            target: "bits",
            value: "bits + 8",
        },
    ],
    always_blocks: [],
    instances: [],
    memories: [],
    clock_domains: [],
    clock_crossings: [],
    fifos: [],
    bus_ports: [],
    apb_bridges: [],
    gf16_accels: [],
    formal_asserts: [],
    formal_covers: [],
    formal_assumes: [],
    formal_config: None,
    ternary_cores: [],
}files $

recorded 2026-10-08 00:22 UTCreal 3.2 sshown 3.2 sexit codes 0

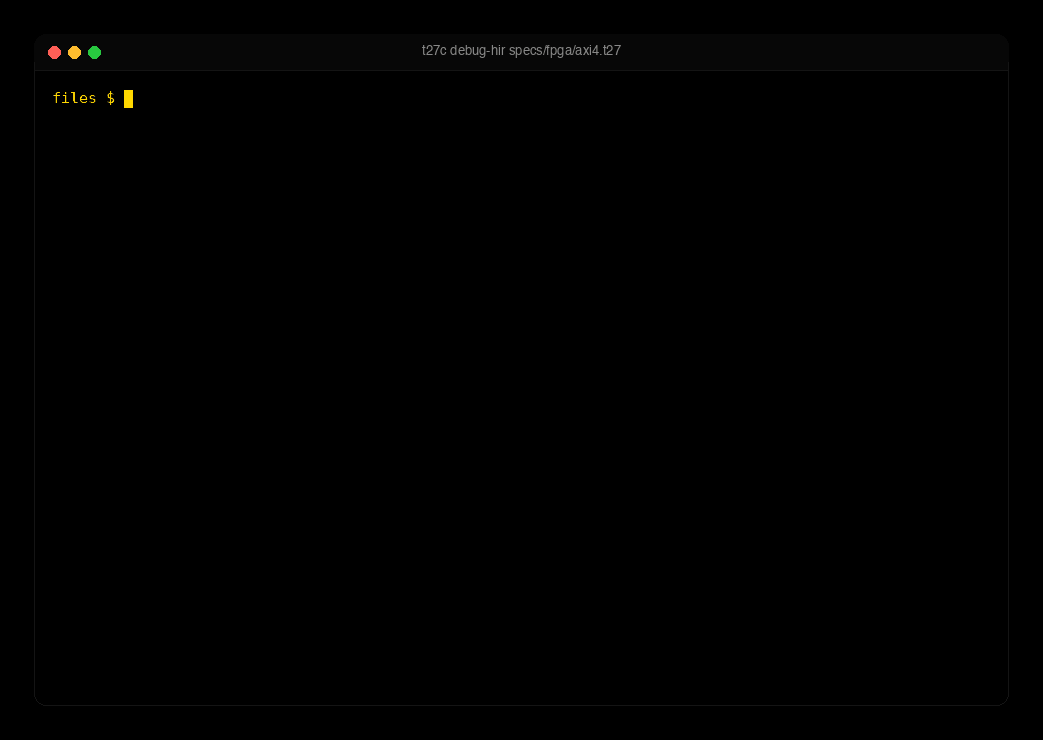

$ t27c debug-hir specs/fpga/axi4.t27

Staged: the prompt and the typing. Real: every byte the commands printed, at the time they printed it. Any silence longer than 2 s is shown for 2 s, and the title bar says so while it happens. Edited: home directory shown as ~.

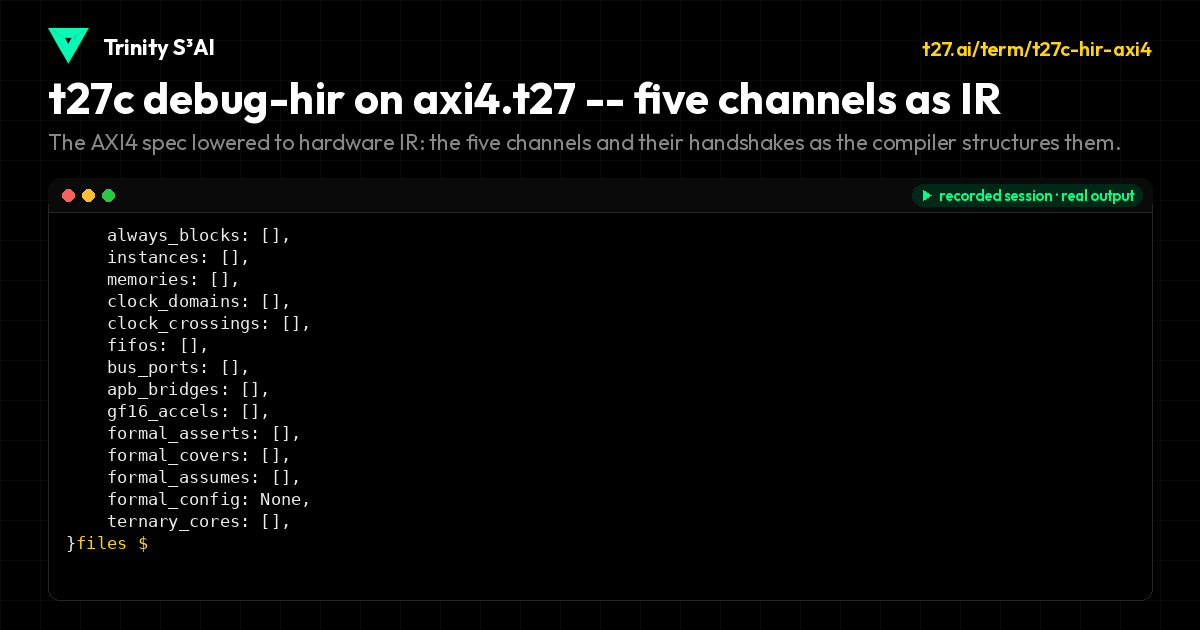

GIF Preview card
